NLAP-IPP (Mechanical Realization)

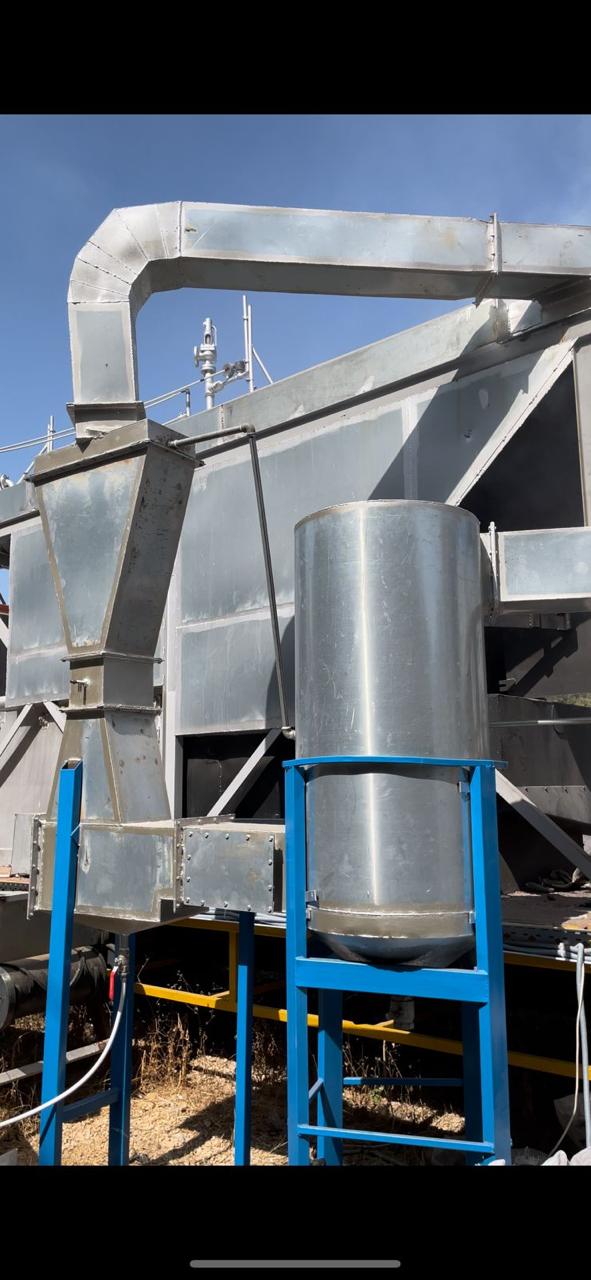

Cyclone inner square duct modification to a vortex shape(21.06.22):

تعديل و تطويل داخل الcyclone من الشكل المربع للشكل الدائري vortex shape

Old Design

New Design

Mechanical Realization since May 2022:

- تركيب ال turbine valves الكهربائي

- تحسين المحرقة من الداخل

- تركيب مرشات مياه لإستخدامها ك chemical filtre

- تعديل الEelectrofilter

هنا قمنا بعزل ال phases وال neutres عبر وضع الرخام بينهم

توصيلي phases الإلكترو فتر على ال transformateur

توصيل ال neutres على الtansformateurs

Testing without Electro-filter for temperature Calculation

first of all, the powerplant checked for the electric parts

4 water sprinklers added to the scrubber

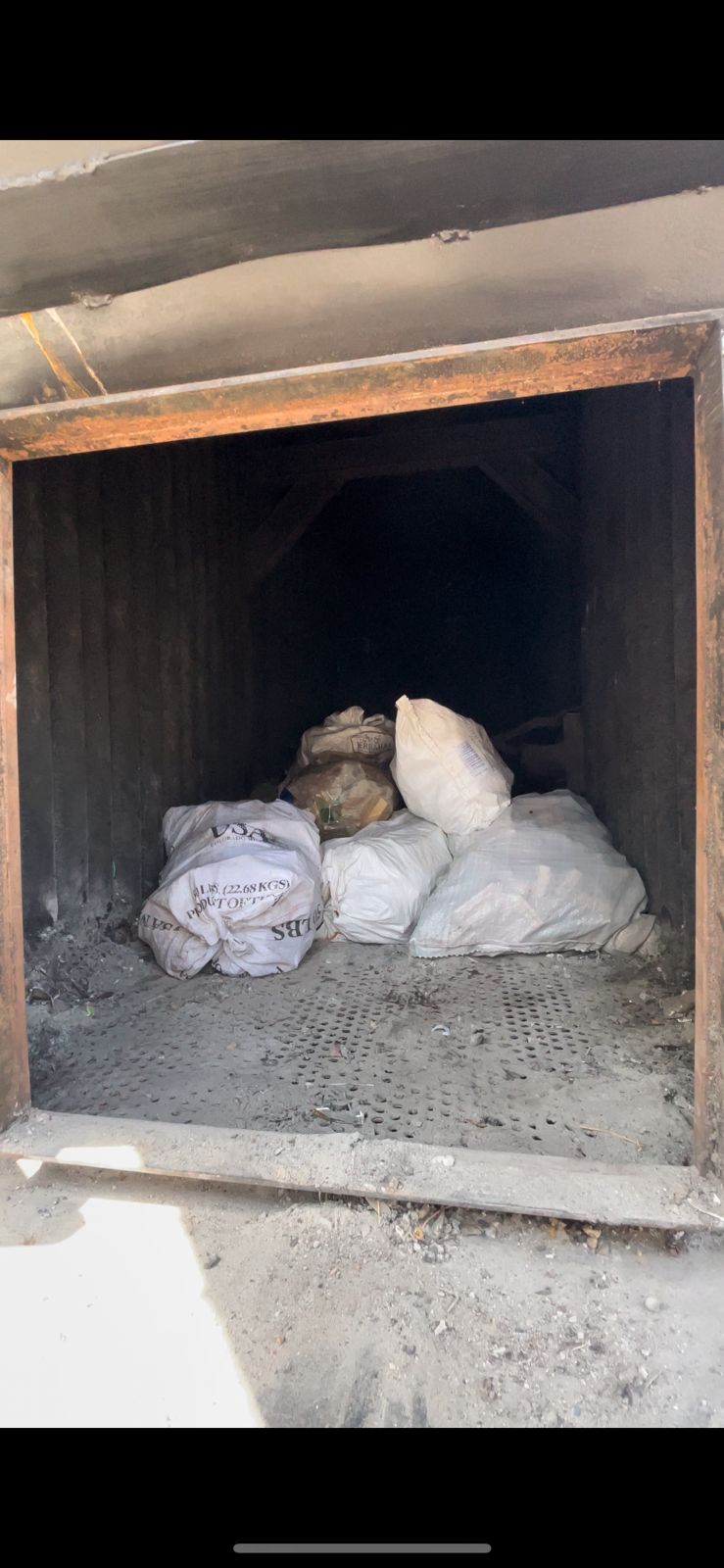

13-waste bags installed in the furnace for the test

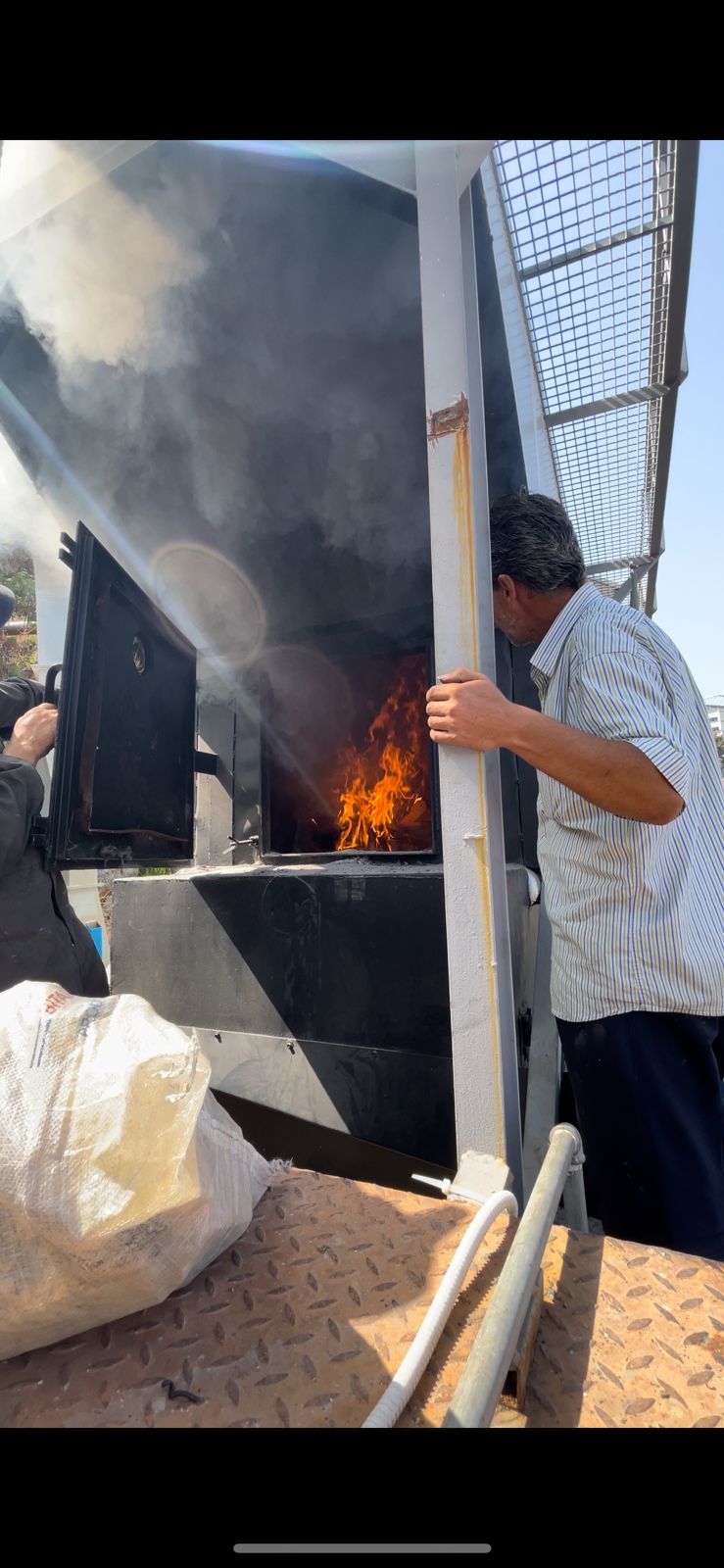

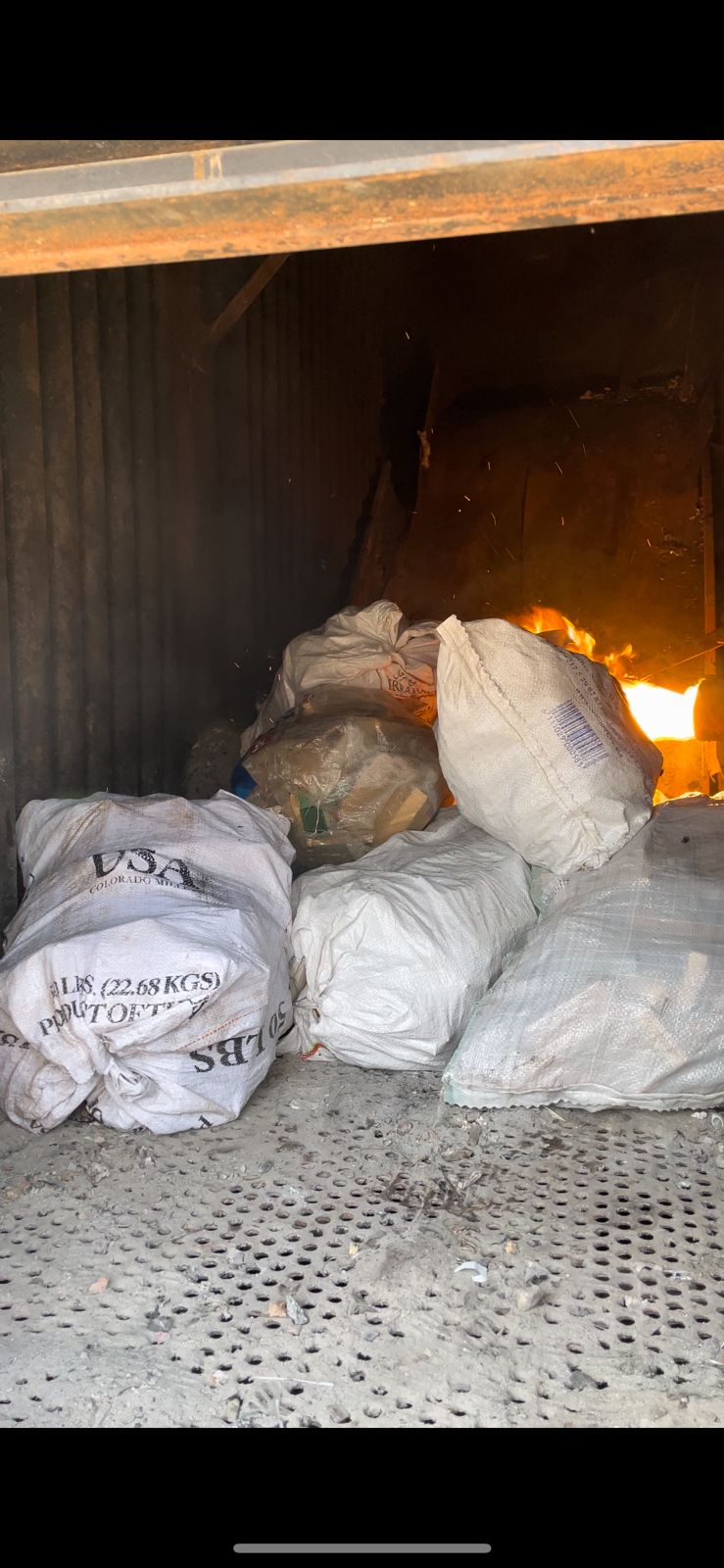

fire started in the furnace

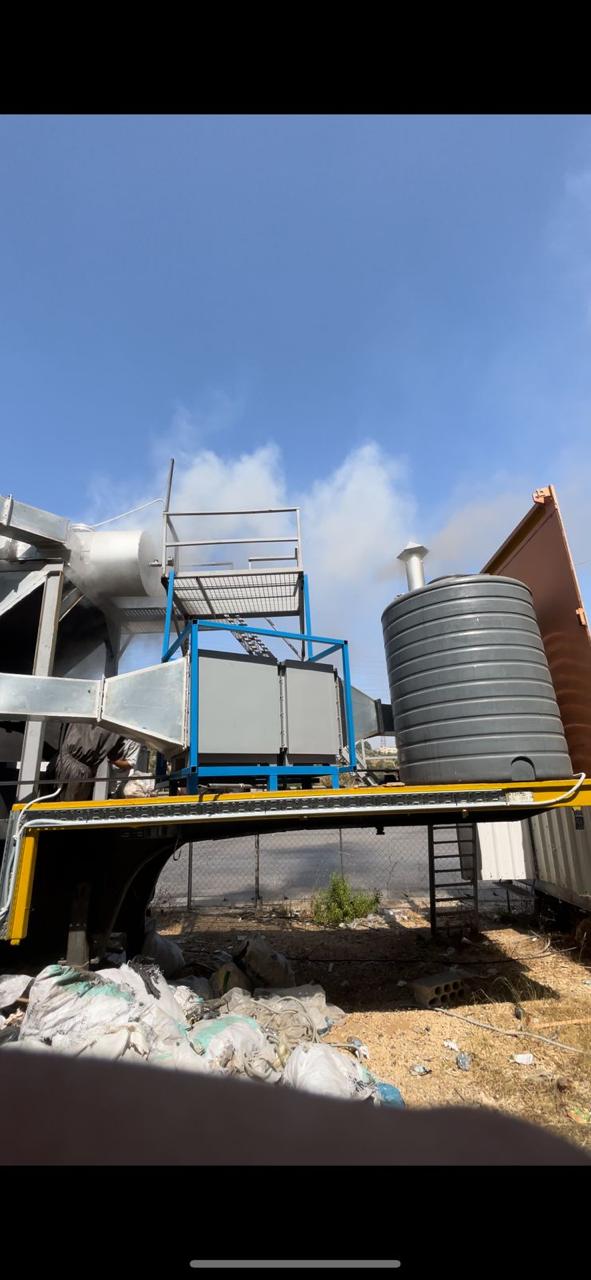

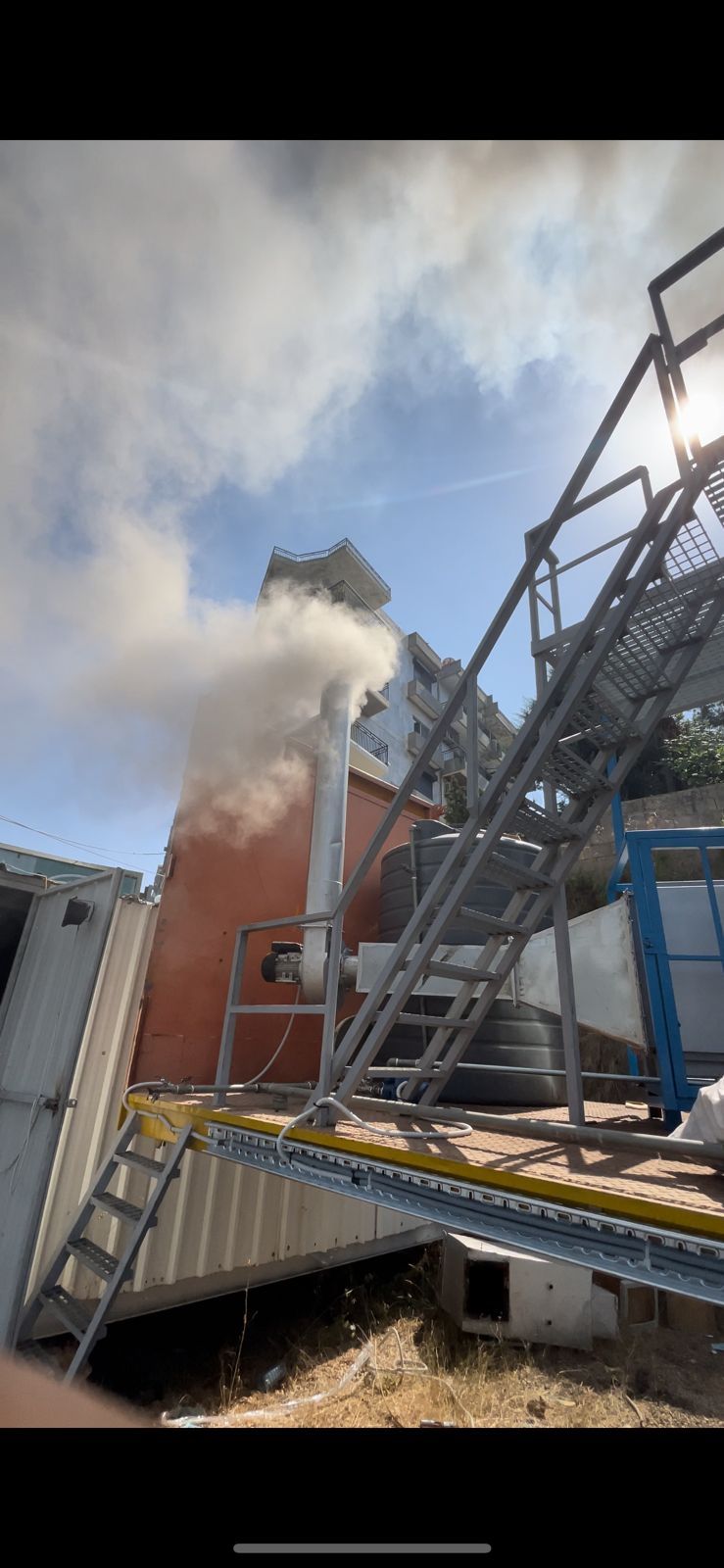

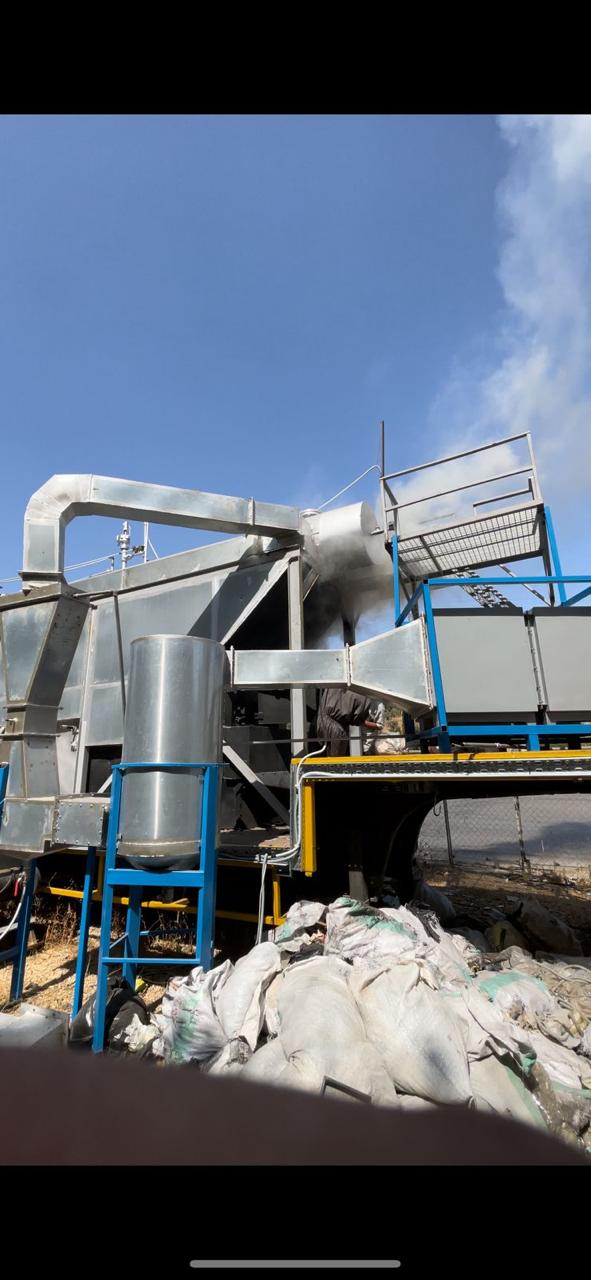

the powerplant started working and data collected of the teperature

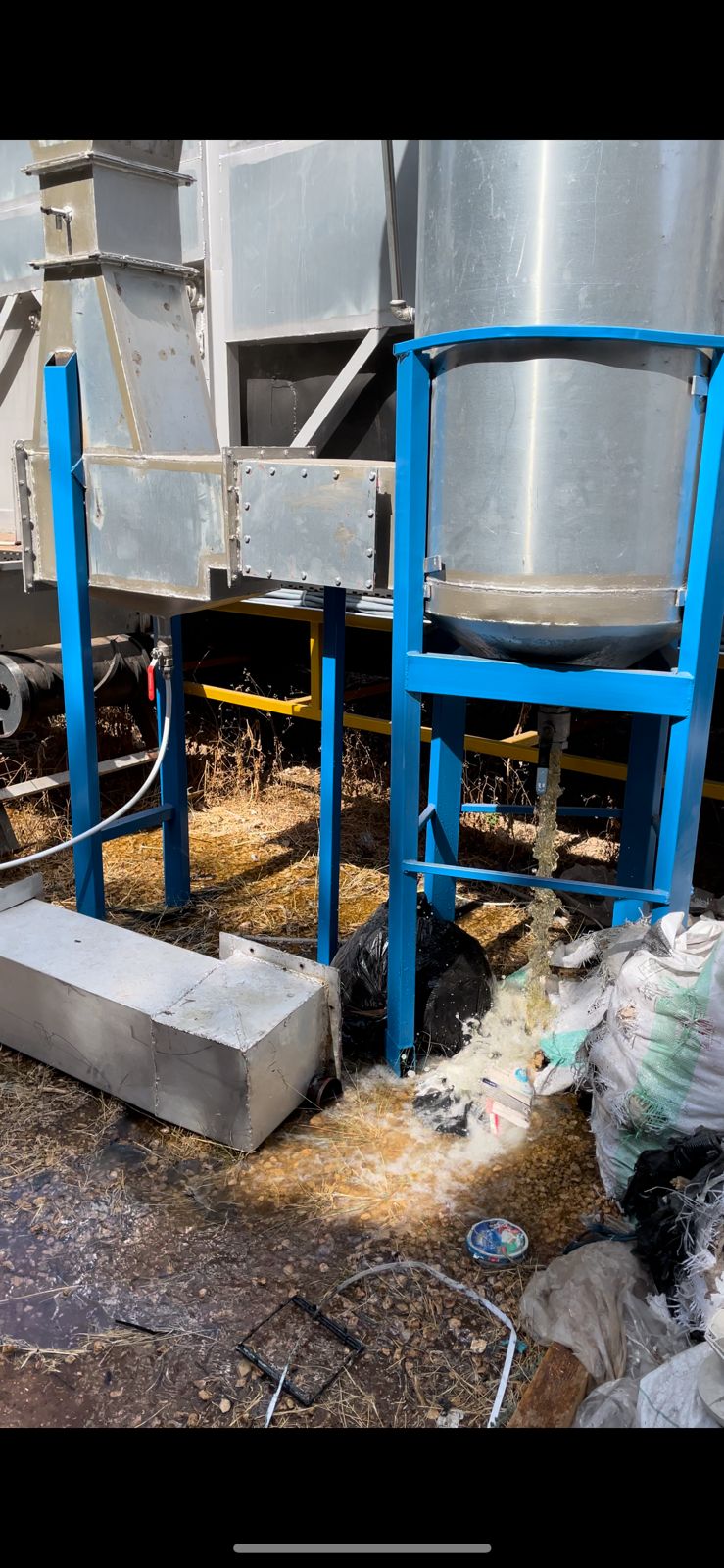

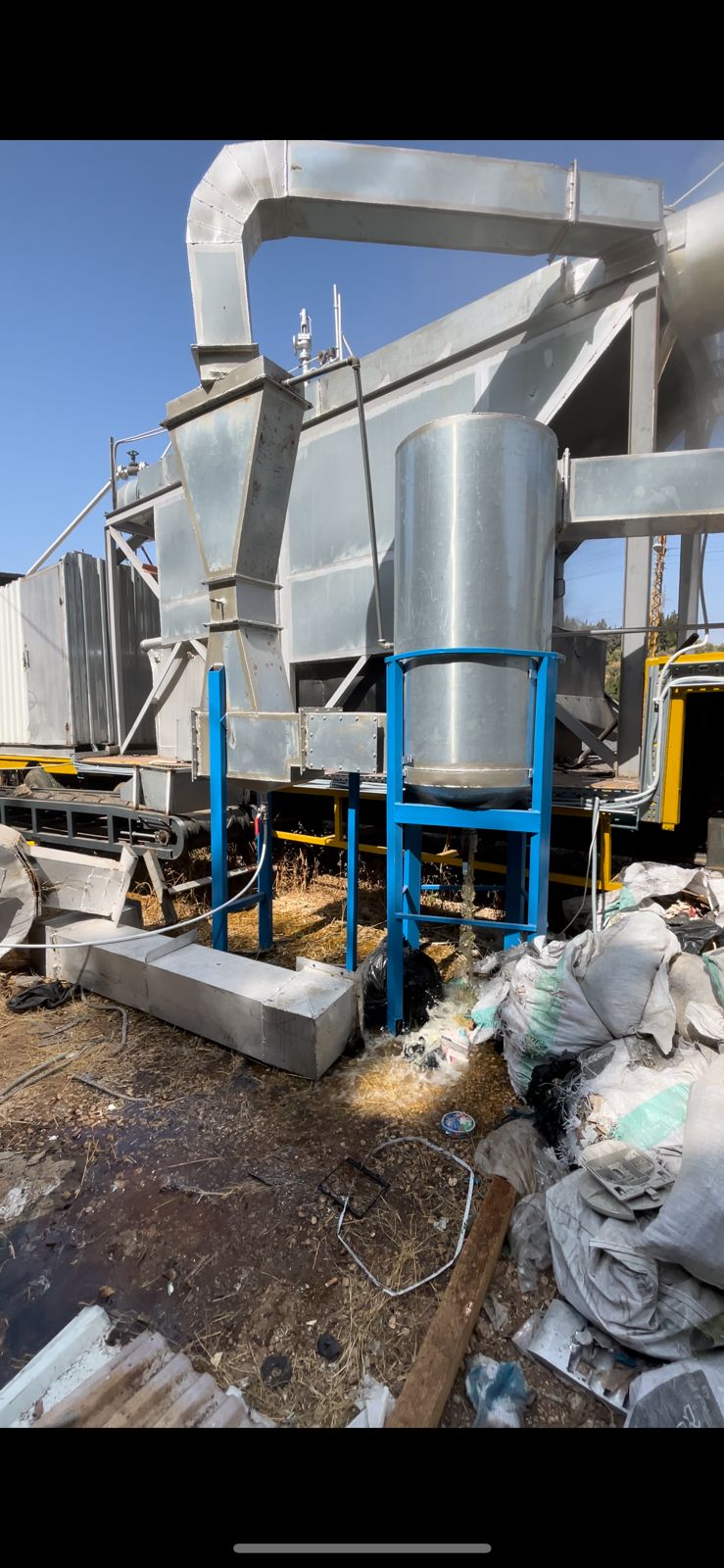

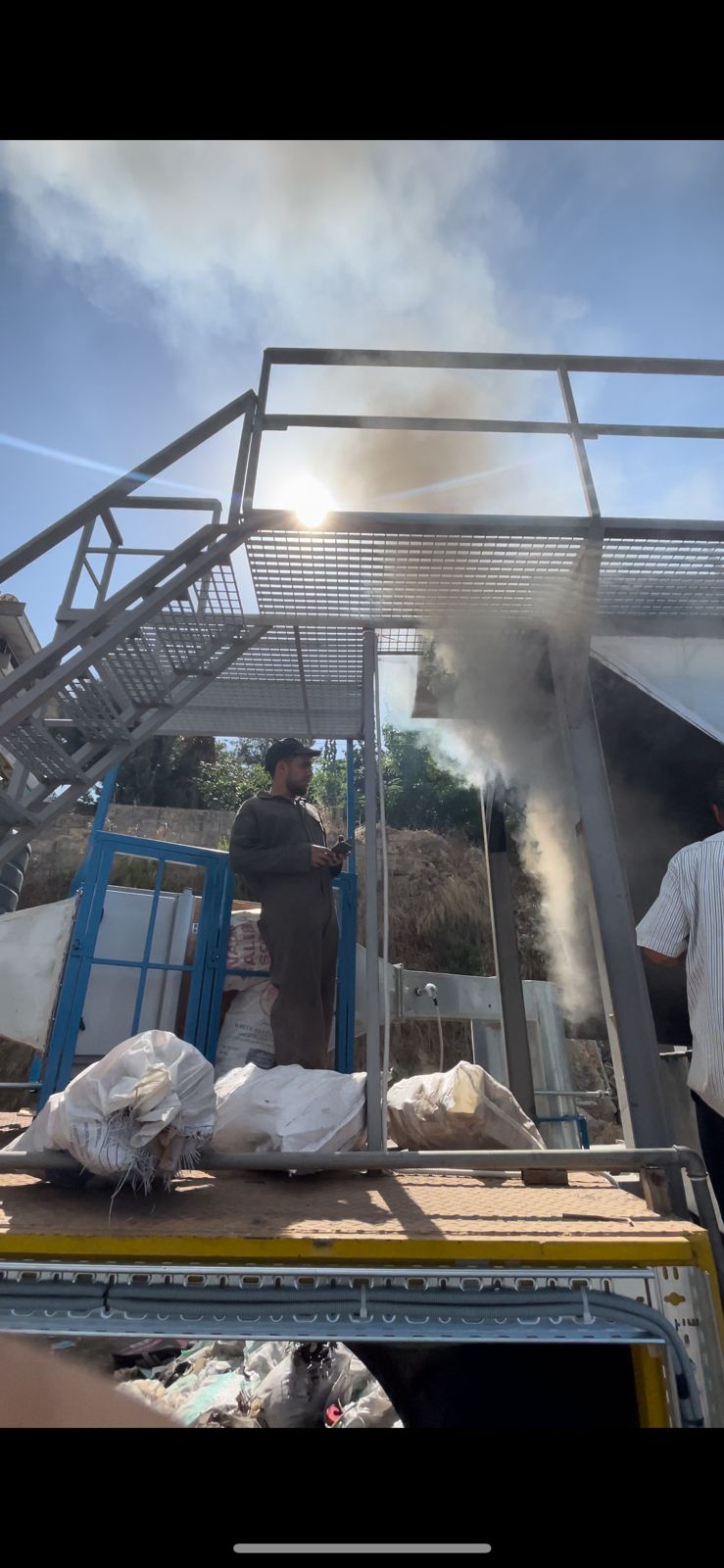

the fire started choking due to water over flow in the scrubber

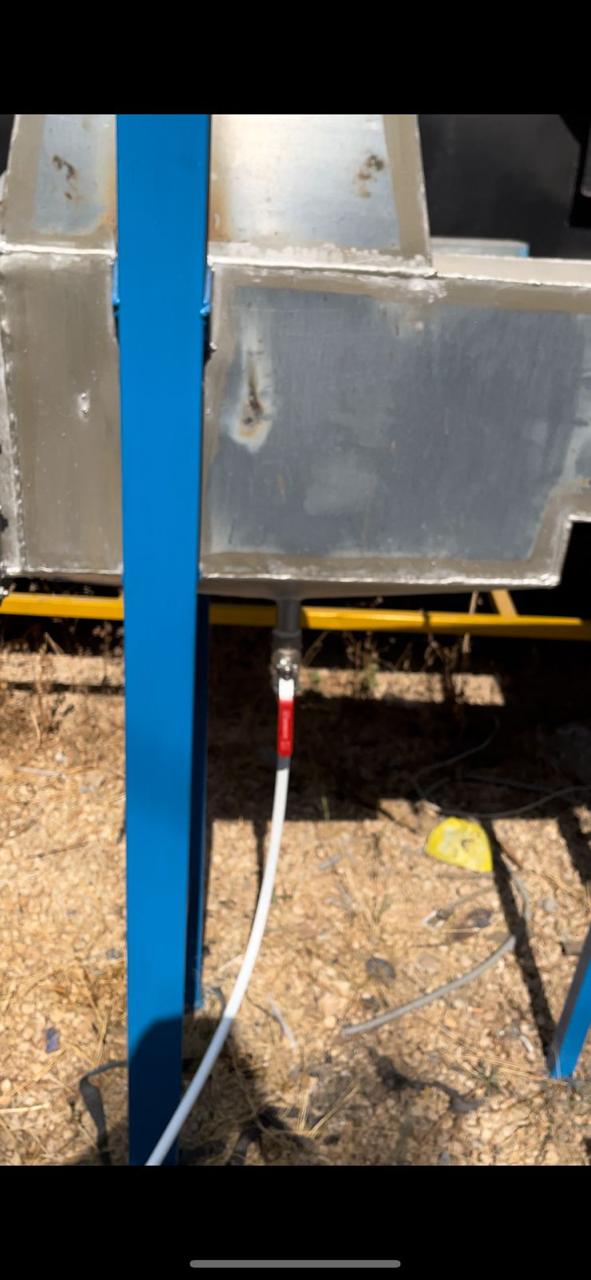

the ball valve of the cyclone opened to release the excess amount of water chocking the flow of the smoke
