006: Aspirin Production System Test (Water test)

Step	Step Description	Results
Precondition	System is OFF
TURNING ON the system	Turn ON the control panel	The system is ON
Switch on the mixer 1 (tank 1 : Reactor)	Turn on the mixer 1 from the control panel (Reactor--->Mixer ON)	Mixer 1 is ON and start Mixing the Water (Reactor)
Open the valve V1 (tank1 : Reactor)	Open the valve V1 to transfer the mixture from tank 1 (reactor) to tank 2 (cooler) (Reactor---->Reactor valve V1)	The Water is transferred to Cooler (tank 2)
Open the valve 6 (tank 3 : HOT WATER)	Open the valve V6 to add water from HOT WATER TANK (tank 3) to the cooler (tank 2) (HOt WATER TANK---->HOT WATER TANK valve V6)	-The water is in the cooler (tank 2) -The flow sensor is marking the number of Litres going through
Open the valve V2 (tank 2: Cooler)	Turn ON the pump 1 Open the valve V2 to transfer the Water from cooler (tank 2) to crystallizer (tank 4) (cooler---->cooler pump 1) (cooler---->cooler valve V2)	-The Water are transferred to the crystallizer (tank 4) -pump 1 pumping the water from tank 2 (cooler) to tank 4 (crystallizer)
Switch on the mixer 2 (tank 4 : Crystallizer)	Turn on the mixer from the control panel (Crystallizer--->Mixer ON)	Mixer 2 is ON and start Mixing the Water Crystallizer (tank 4)
Open the valve V3 (tank 4: Crystallizer)	Open the valve V3 to transfer the Water from crystallizer (tank 4) to the filter (tank 5) (crystallizer---->crystallizer valve V3)	The Water transferred to the filter (tank 5)
Open the valve V7 (TANK 3: HOT WATER)	Open the valve V7 to add water from HOT WATER TANK (tank 3) to filter tank(tank 5) (HOT WATER TANK---->HOT WATER Valve V7)	The Water transferred to filter tank (tank 5)
Open the valve V5 (tank 5: Filter)	Turn ON the pump 2 Open the valve V5 The Water is pumped from tank 5 to tank 4 for the second crystallization (filter---->filter Valve V5)	-Water transferred to the crystallizer (tank 4) -pump 2 pumping the water from tank 5(filter) to tank 4 (crystallizer)
switching OFF the system	switch OFF the system	the system is OFF
Postcondition	system is OFF

video006: video 3.1 testing all mixers pumps and control system (water only) 14/12/2023

Overview: Mixers, Valves and pumps are working well and this test was enough to prove this, so for the next step we should try the same test with the chemicals reagents

1. Overview of control panel system for Aspirin pilot plant

2. Turn ON the mixer by switching manually to mix the solution (PS: in this test we used water only)

3. Turn ON manually valve 1 to transfer the solution to the Cooler (tank 3)

4. Turn ON manually valve 7 to transfer distilled water from Hot water tank (tank 2) to filter (tank 5)

5. Turn ON manually valve 6 to transfer distilled water from Hot water tank (tank 2) to Cooler (tank 3) (PS: there's a flow sensor to determine the quantity needed of distilled water)

6. Turn ON manually the heater to warm up distilled water needed (PS: there's a temperature sensor to determine the temperature of DW required)

7. Turn ON manually valve 2 to transfer the mixture (Water) from the cooler (tank 3) to crystallizer (tank 4)

8. Turn ON manually pump 1 to transfer the mixture (Water) from the cooler (tank 3) to crystallizer (tank 4)

9. Turn ON munally the "Mixer" and valve 3 to mixing and transfer the mixture from the Crystallizer (tank 4) to the Filter ( tank 5)

10. Turn ON the valve 4 to transfer the mixture (water) from the Filter (tank 5) to Waste tank ( tank 6)

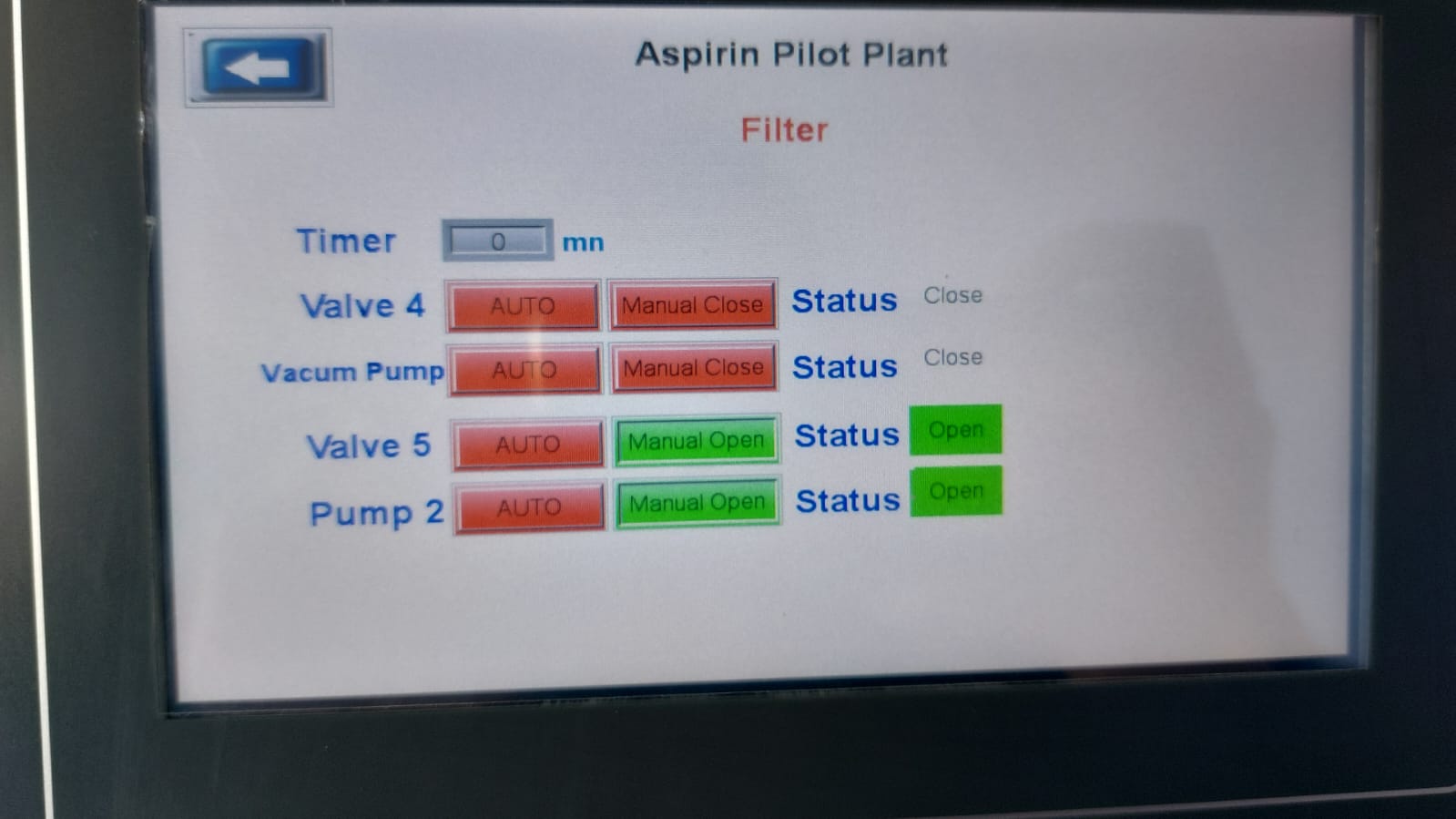

11. Turn ON valve 5 and pump 2 to transfer the mixture (water) from Filter (tank 5) to crystallizer (tank 4) to recrystallization (PURIFICATION STEP)
