Pilot Plant Scale Penicillin/Aspirin Production
|
REACTIVE |
QUANTITY |
COST |
|
|
Liquid medium |
Glucose powder |
400g |
2.8$ |
|
Milk powder |
200g |
2.75$ |
|
|
Peptone |
160g |
4$ |
|
|
Yeast extract |
200g |
63$ |
|
|
MgCl2 |
30g |
2$ |
|
|
KCl |
30g |
3$ |
|
|
KH2PO4 |
20g |
4.2$ |
|
|
CaCO3 |
40g |
14.7$ |
|
|
Corn oil |
20g |
0.1$ |
|
|
Phenyl acetate |
100g |
28$ |
|
|
Distilled water |
20L |
3$ |
|
|
Purification |
Butyl acetate |
1.7L |
3.5$ |
|
Sodium bicarbonate |
600g |
75$ |
|
|
TOTAL |
206$ |
||

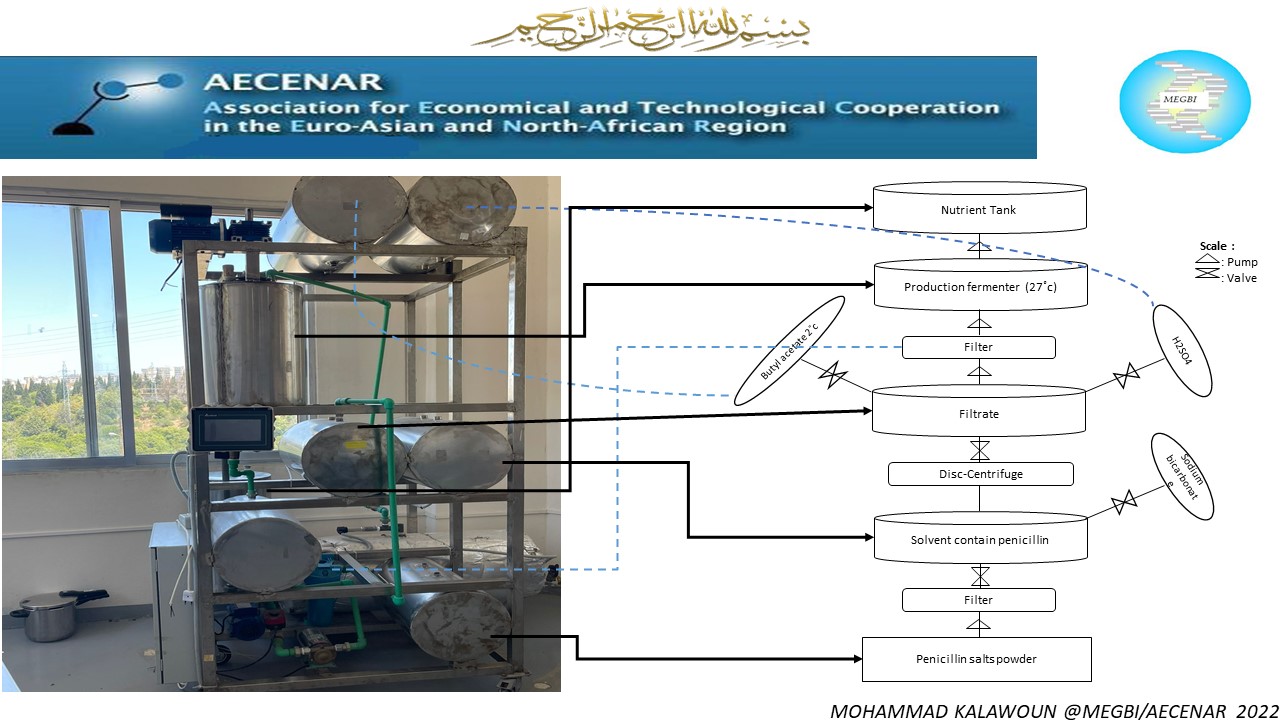

This bioreactor represents the Penicillin production (15days). it is divided in 3 phases:
Microbial culture (4 days) to obtain fresh colonies of penicillium
Medium preparation (10 days)
Purification (1 day).
Image MEGBI penicillin/ampicillin/asprin pilot scale production old design
FreeCAD MEGBI pen/amp/asp pilot scale version 2015
Image MEGBI penicillin/ampicillin/aspirin pilot scale production FreeCAD design 28/11/2022
PS:
Blue tanks : Aspirin
Green tanks : Penicillin/Ampicillin
FreeCAD design MEGBI Pen/Amp/Asp pilot scale version 28/11/2022
Image MEGBI Penicillin/ampicillin/aspirin pilot scale production FreeCAD design 16/12/2022
Blue tanks : Aspirin
Green tanks : Penicillin/Ampicillin
FreeCAD design Pen/Amp/Asp pilot scale version 16/12/2022
Image MEGBI Penicillin/Ampicillin/Aspirin pilot scale production FreeCAD design 23/01/2023 (achieved)
Blue tanks : Aspirin
Green tanks : Penicillin/Ampicillin
FreeCAD design Pen/Amp/Asp pilot scale version 23/01/2023
Image MEGBI Aspirin filter and crystallizer pilot scale FreeCAD design 09/01/2023.
FreeCAD design aspirin filter/crystallizer pilot scale version 10/01/2023
Measurement and sizes of filter/crystallizer aspirin pilot plan:
