NLAP-IPP Filtersystem Design (CAD)

Filter System:

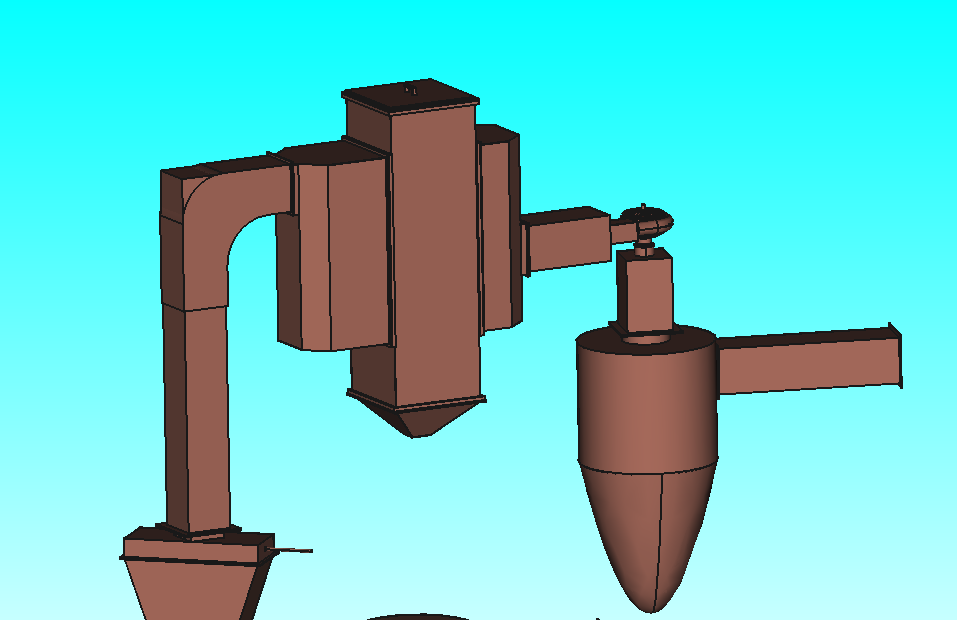

The current design of the filtration system without the electrofilter (11.8.2022):

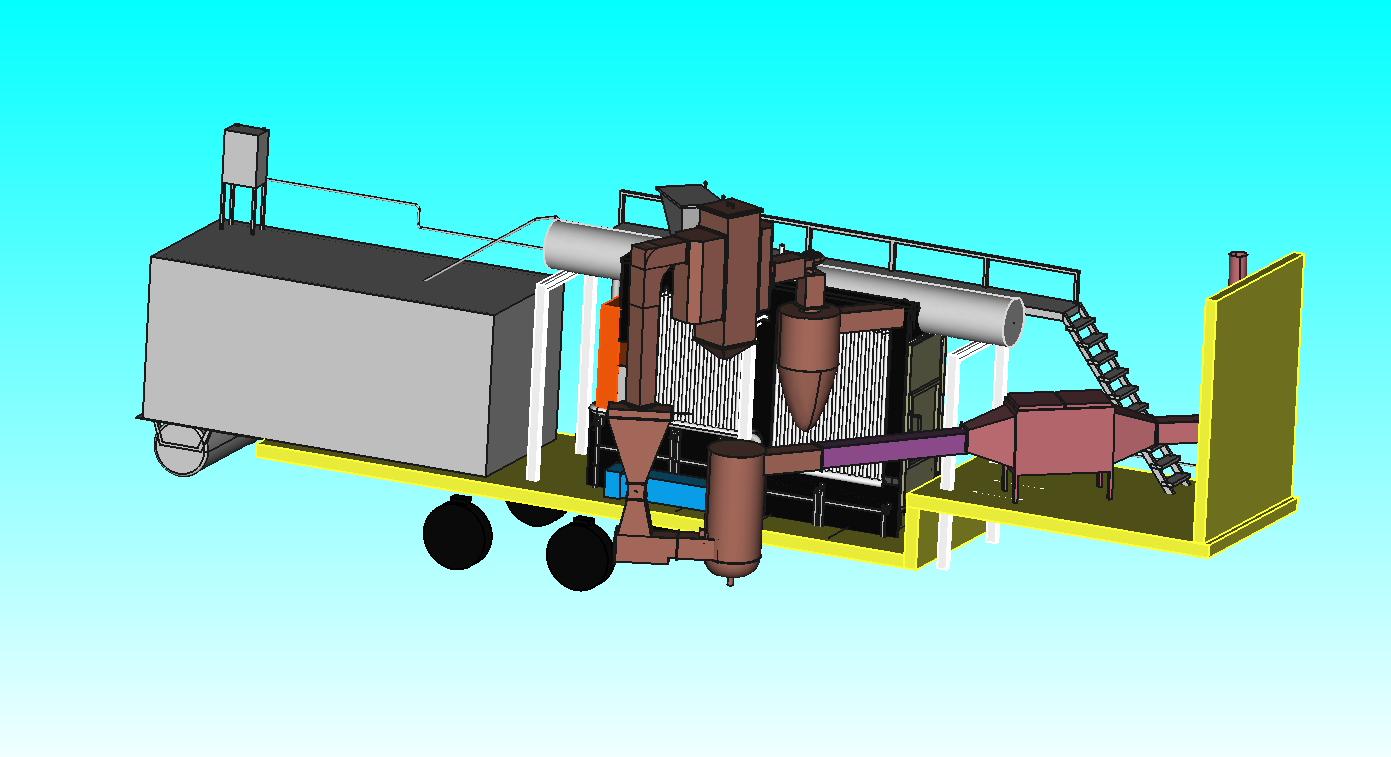

Power Plant Filtration System Version 21.10.2023

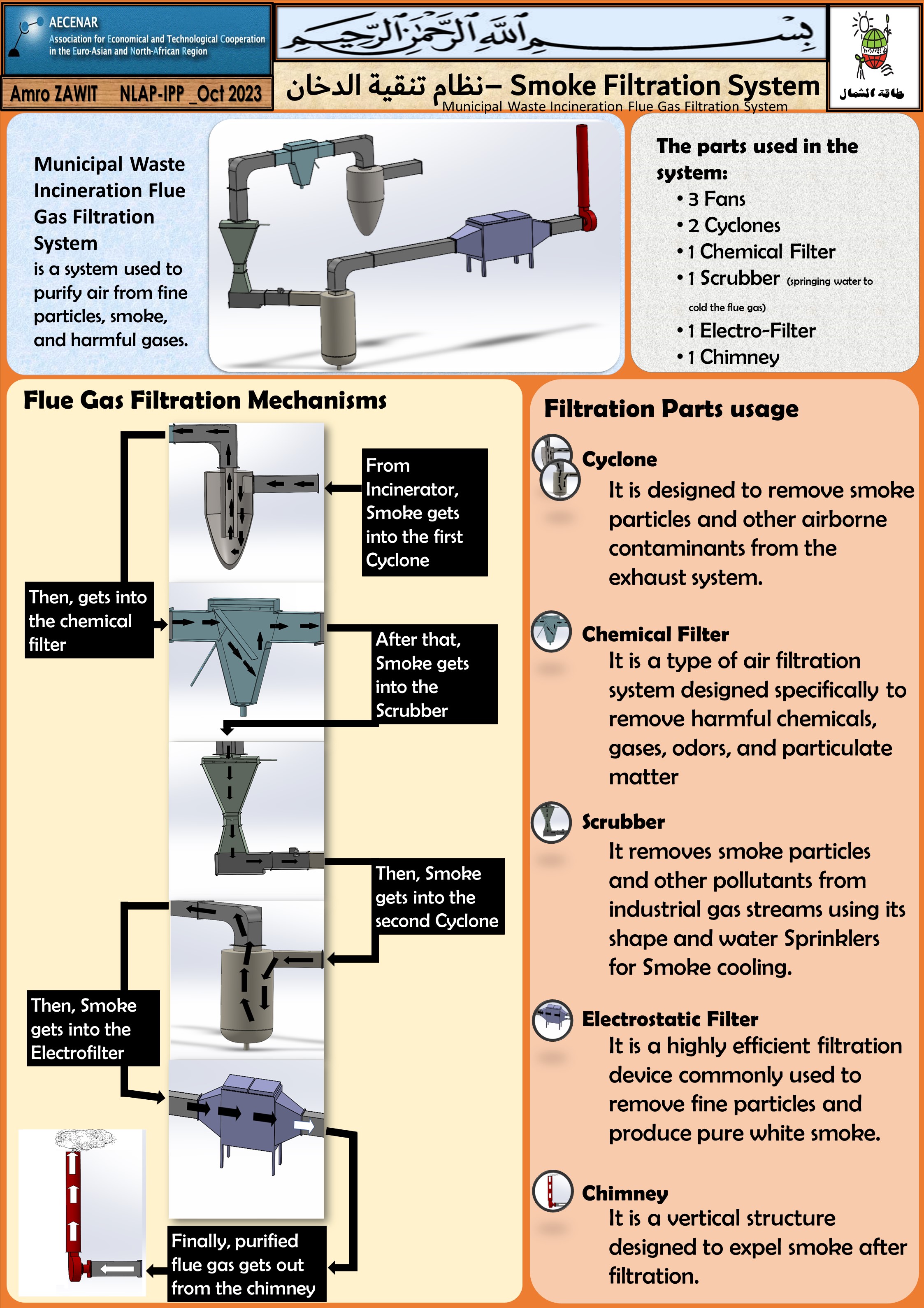

Here is how the cycle works:





Filtration system for waste incinerator (pptx)

Filtration system for waste incinerator (pdf)







On November 27, 2023, the Flue Gas System was updated:

This system has been modified by adding the old chemical filter and the old cyclone only, and nothing else has been modified.

This test will be done to see the effectiveness of the old cyclone, the chemical filters, the air turbine, and the new sprinklers with the new water system to cool and clean the flow gas.



This system will be tasted after connecting the new water tank and the two chemical tanks with water pump for each one

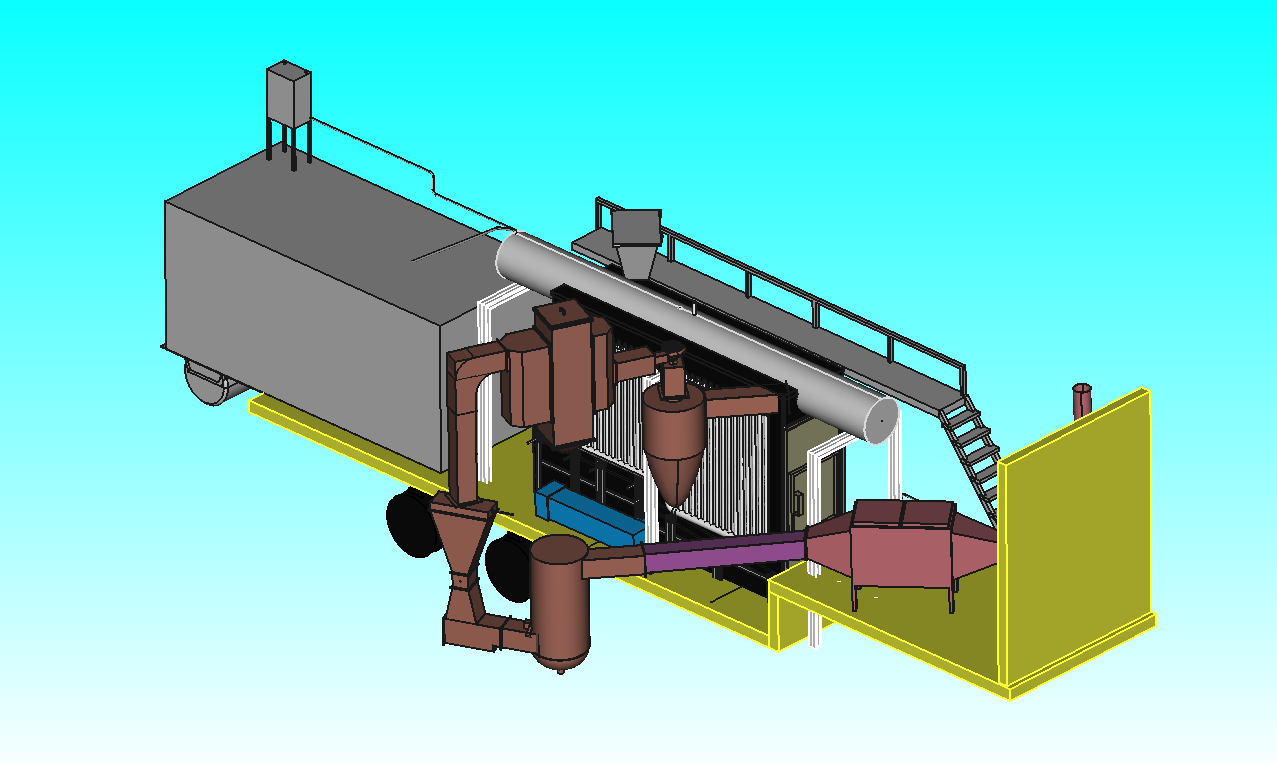

and this is the full FREECAD system that was modified on November 27, 2023:

FREECAD MODEL: 27112023NLAP-IPP-Filtration System without Electro-filter

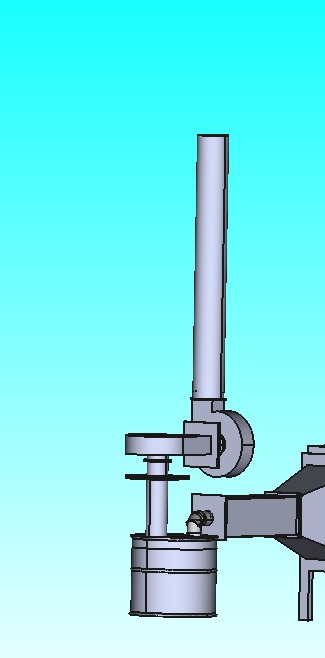

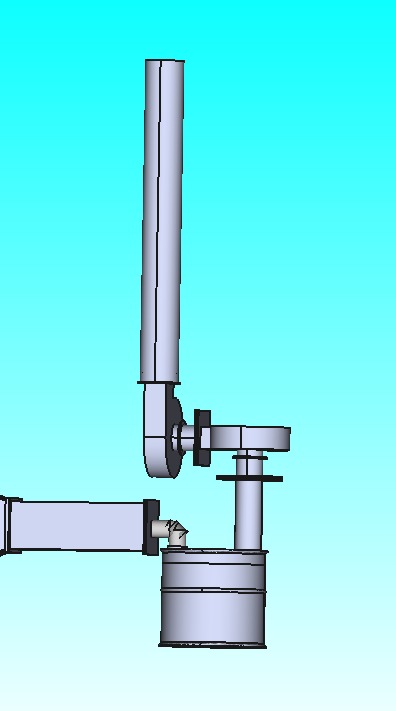

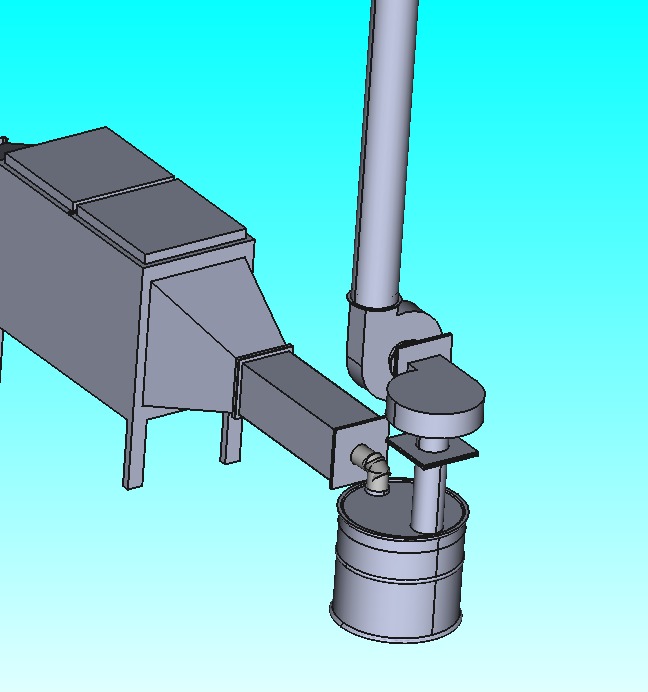

 After Electrofilter, in front of flue gas outlet: flue gas flows through water (like argile) - 14.06.24:











Filter System

21102023NLAP-IPP-FilterSystem.FCSTd (last Version: 21.10.2023)



FreeCAD Model of NLAP-IPP Filtration System (FCStd file) (Version: 3.8.2022)
Filter System without the Electrofilter :

FreeCAD Model of NLAP-IPP Filtration System without the Electrofilter(FCStd file) (Last version: 11.8.2022)


Filter System without the Electrofilter :

FreeCAD Model of NLAP-IPP Filtration System without Electrofilter(FCStd file)

(last version: 27.11.2023)
