Mechanical design

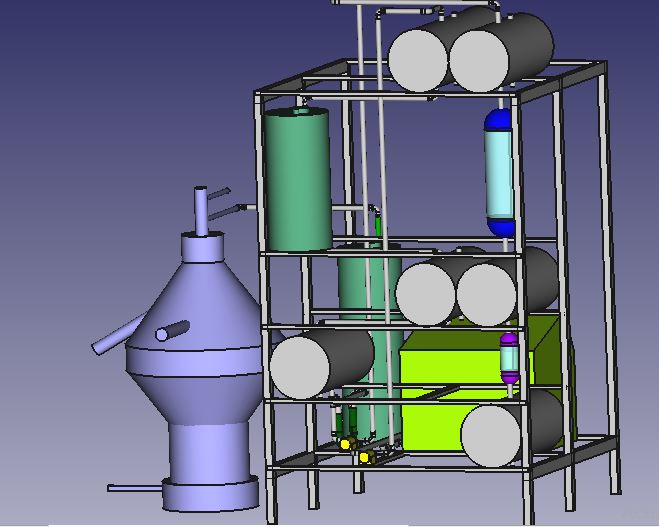

Image MEGBI penicillin/ampicillin/asprin pilot scale production old design

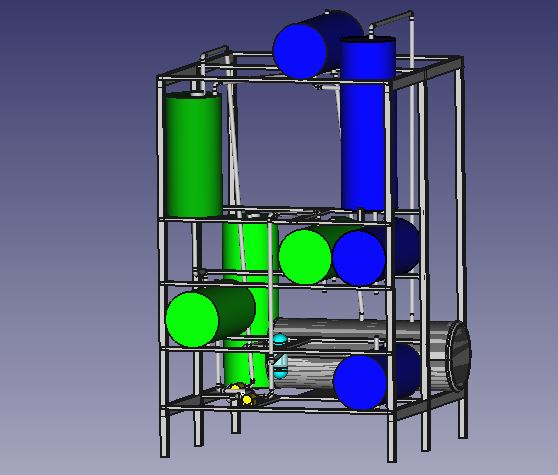

FreeCAD MEGBI pen/amp/asp pilot scale version 2015
Image MEGBI penicillin/ampicillin/aspirin pilot scale production FreeCAD design 28/11/2022
PS:
Blue tanks : Aspirin
Green tanks : Penicillin/Ampicillin
FreeCAD design MEGBI Pen/Amp/Asp pilot scale version 28/11/2022

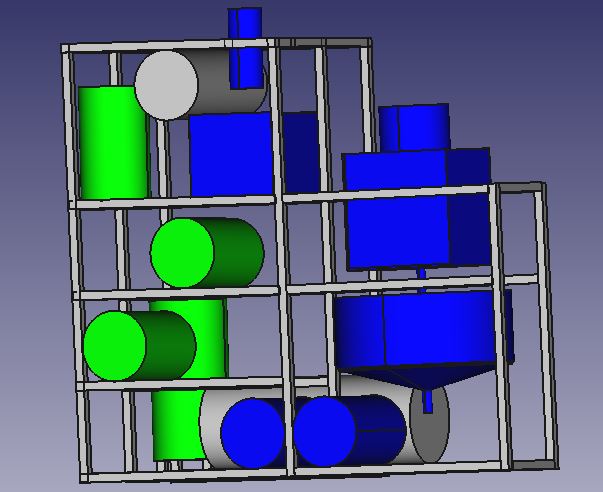

Image MEGBI Penicillin/ampicillin/aspirin pilot scale production FreeCAD design 16/12/2022
Blue tanks : Aspirin
Green tanks : Penicillin/Ampicillin
FreeCAD design Pen/Amp/Asp pilot scale version 16/12/2022

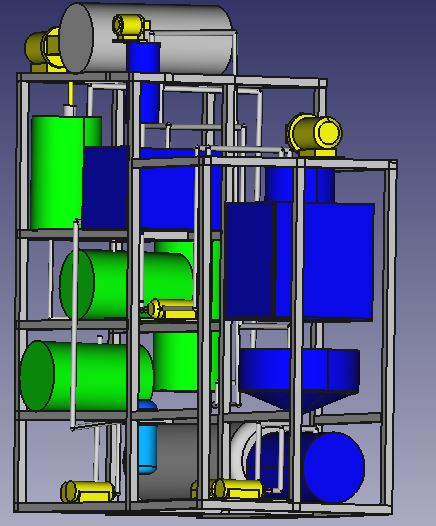

Image MEGBI Penicillin/Ampicillin/Aspirin pilot scale production FreeCAD design 23/01/2023 (achieved)
Blue tanks : Aspirin
Green tanks : Penicillin/Ampicillin
FreeCAD design Pen/Amp/Asp pilot scale version 23/01/2023

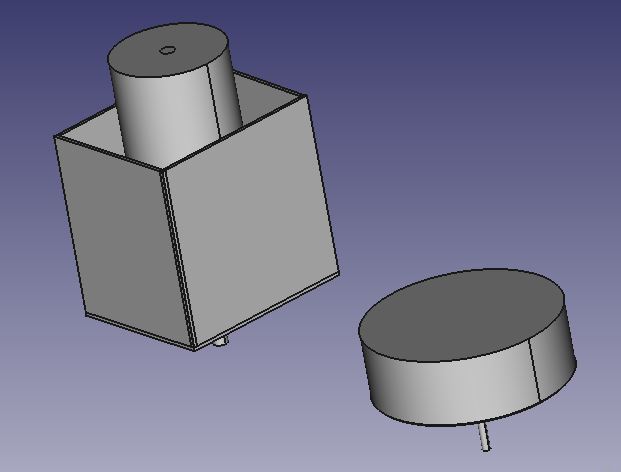

Image MEGBI Aspirin filter and crystallizer pilot scale FreeCAD design 09/01/2023.

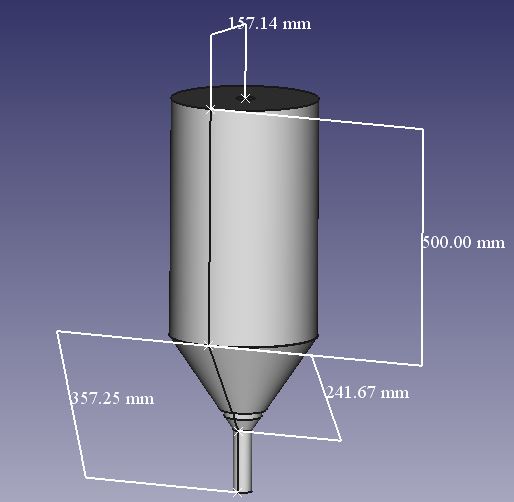

FreeCAD design aspirin filter/crystallizer pilot scale version 10/01/2023

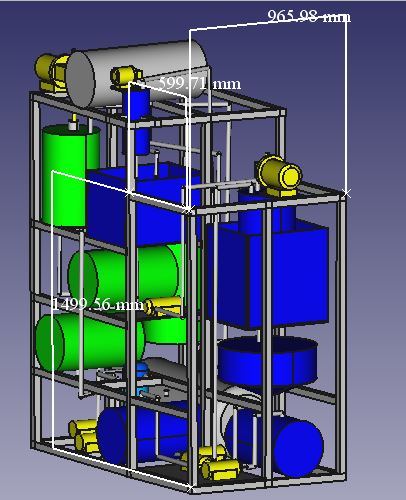

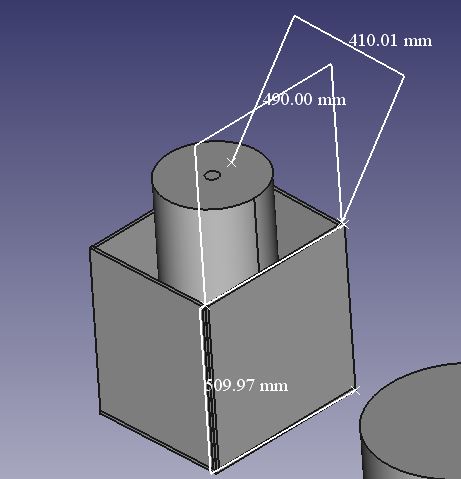

Measurement and sizes of filter/crystallizer aspirin pilot plan:

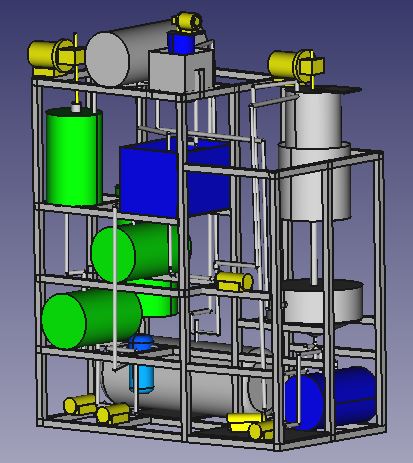

Image for lastet update for pilot plant ASPIRIN/PENICILLIN production 18/11/2023

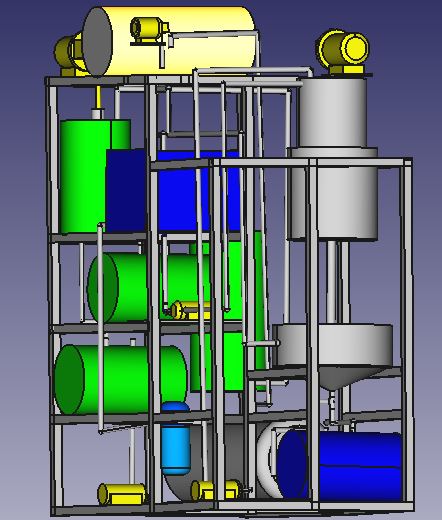

Image for lastet update for pilot plant ASPIRIN/PENICILLIN production 23/11/2023
FreeCAD design ASPIRIN/PENICILLIN Pilot plant 23/11/2023
