Test whether the membrane is ruptured 29.07.2022

Testing according the test 00007: Test whether the membrane is ruptured

if there are air bubbles from the hydrogene half cells set the membrane have to be changed .

Step

Step Description

Expected Result

Results

Precondition

System is off




Emptying the cells  Placing a container under the two emptying valves and open the two emptying valves so that the containers are filled with te solution of the cells . The solution flows into the containers. not done
Closing of the emptying valves.  closing the emptying valves after the whole sotution flowed from the cells into the containers . the emptying valves are closed  not done

let the air enter to the half-cell set of oxygen.

connect the air compressor to one set of the half cell sets and tur on the compressor.

air bubbles are seen only in the one set on which the air bubbles is connected

not done

Stop the air

turn off the compressor

the compressor is off

not done



Postcondition

System  off the systeme

 systeme is off



Before we could start with the actual test, we first had to purge the electrolyser with nitrogen.



When we did this, water flowed out of one or more cells.

And the level of the water in the filters and in the containers for the level controllers has changed.

as one can see in the figures below :

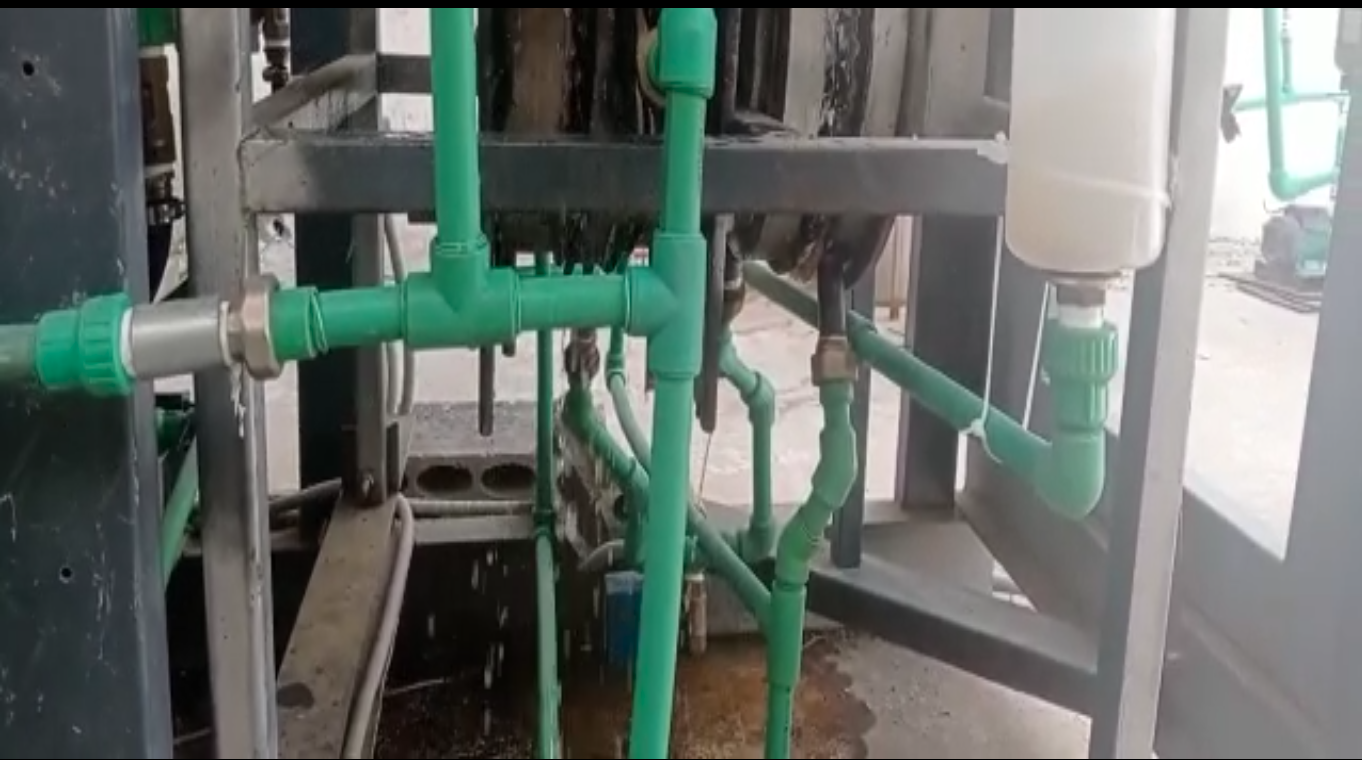

fig 1 : water sprays out of the cells

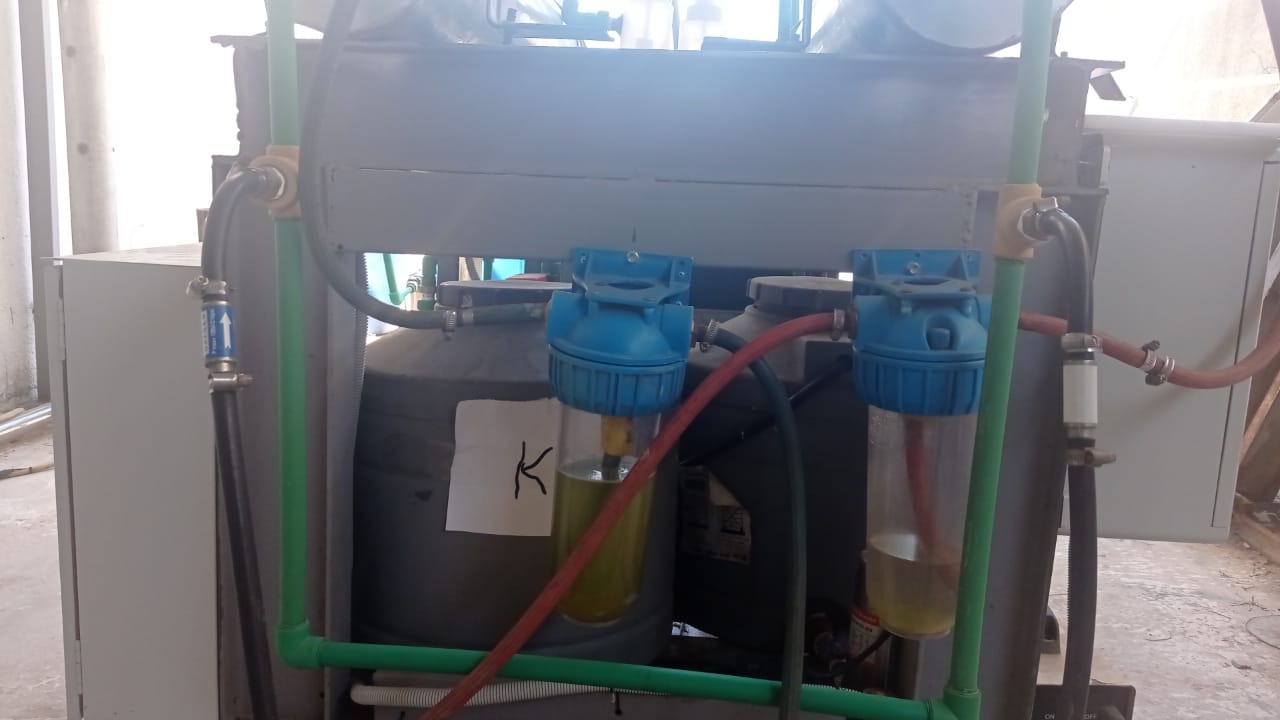

fig 2 : the level change in the filters

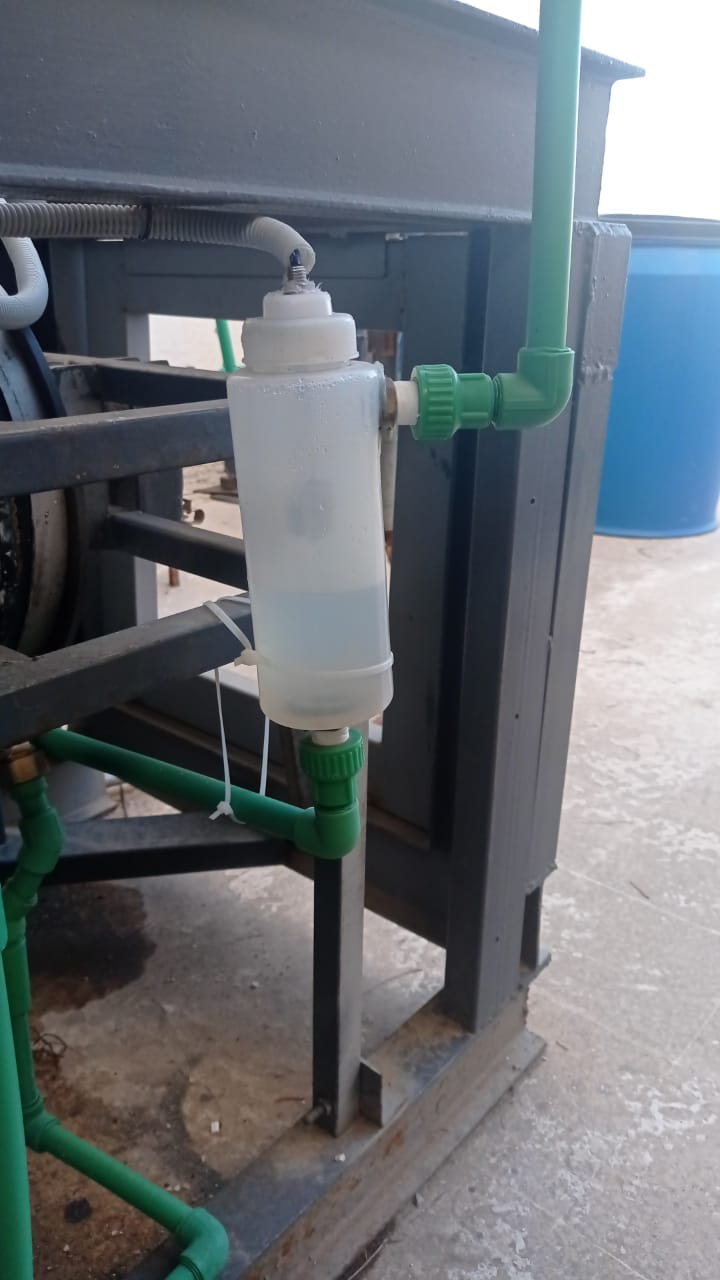

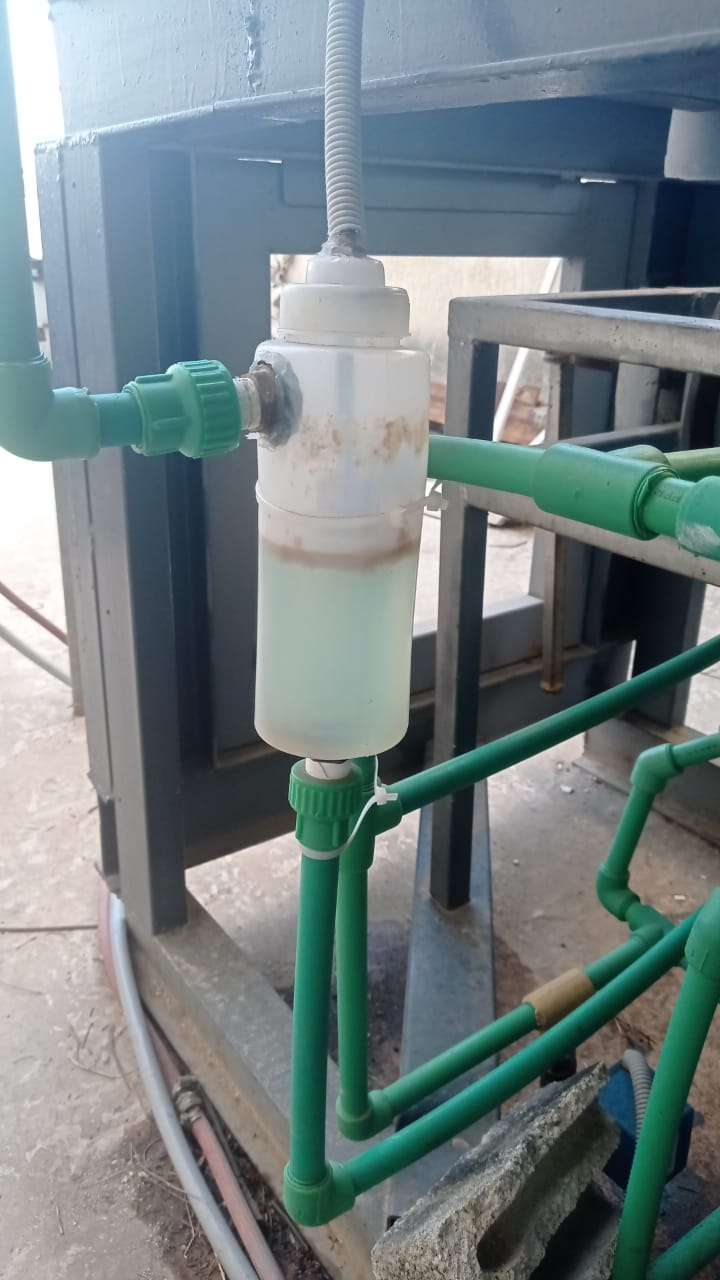

fig 3 : the level changes in the level controlling containers



Test Analysis :

test analysis to be discussed further but we think that the membrane is ruppted and the pressure of the cells on each other has become weaker .



what we have to do :

open the cells and change the membranes and refix the cells
