Fuel Cell System Test Specifications



Step 1:

Hydrogen preparation for use in a fuel cell system:


    • First, an exothermic reaction is initiated, where hydrochloric acid (HCl) reacts with aluminum to produce hydrogen.
    • Next, the chemistry lab was set up following all appropriate safety standards.

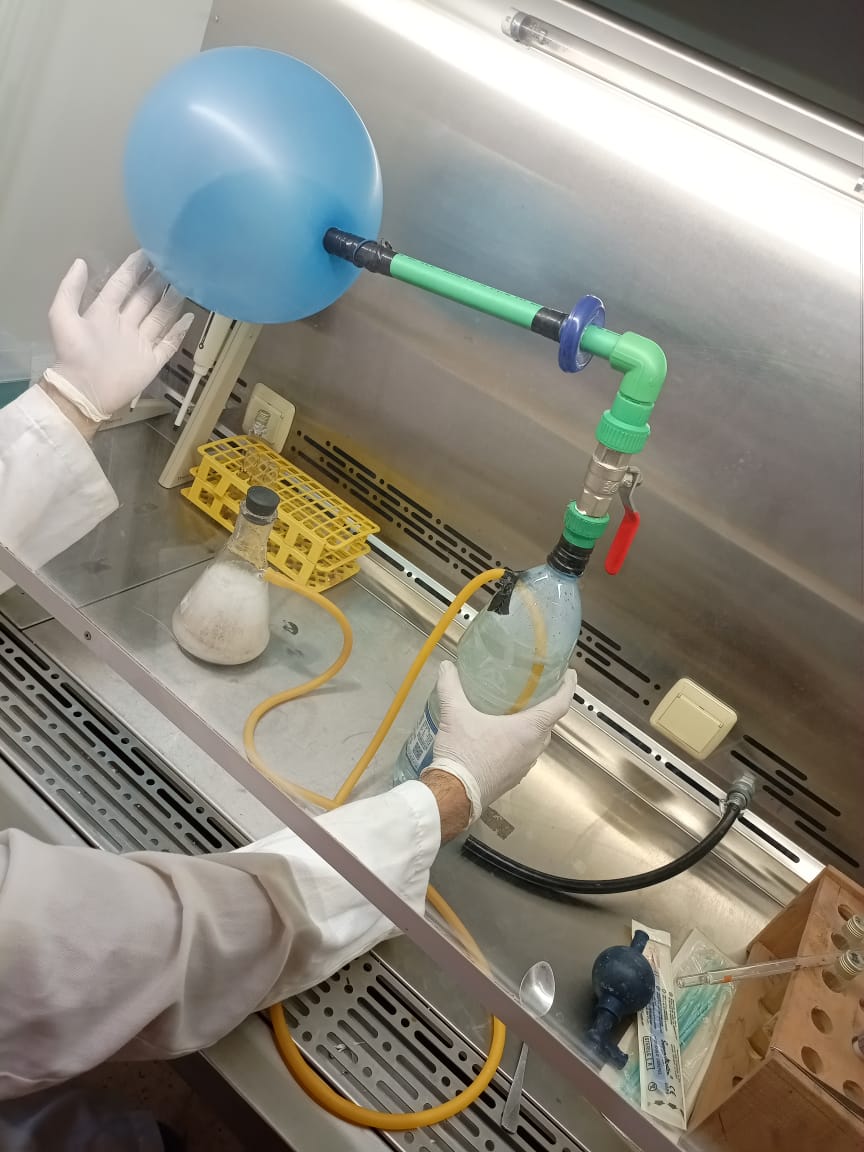

    • The equipment used includes a water bottle connected to an Erlenmeyer flask via a tube. A small faucet is attached to the tube, with an uninflated balloon fixed to the end of the faucet.
    • A measured amount of acid was poured into the Erlenmeyer, followed by the addition of aluminum pieces. The reaction quickly accelerated, causing the balloon to inflate as it filled with hydrogen.





 Test Specification of Fuel Cell System

 Step  Step Description   Expected Result
 Precondition

-System is off

-The connection wires were connected

-and the voltmeter as well as the ammeter were prepared.

-Three resistors were used in place of a fuel cell stack, and the resistance (in ohms) was measured

-Additionally, a fan was installed on the fuel cell system to use oxygen




Open the Valve Open the valve  The valve is open and allows the hydrogen gas to pass through.
 Switch ON the system

 Turn Off the globle Hydrogen valve

Turn On the system from the GUI

 The system  in general, produces water, heat, and electricity
