Linac Test 10/02/23

00002: power supply

Step Step description Expected result Result
Precondition System is Off
Switch On the system turn on the power supply (P1) Get continuous power (6 V) positive
Switch Off the system turn Off the power supply (P1) Continuous power stops positive
Postcondition System is Off





00003: Get electrons



Step Step description Expected Result Result
Precondition System is Off
Switch On the pump turn On the pump 95% vacuum positive
Switch on the system Turn on the power supply Get continuous power (6 V) positive
Burning the Tungsten ( or use a electron gun) Burn the Tungsten by supplying it with 6 V power

Get electrons around the Tungsten (the lamp will light)

negative (the lamp turned off) but we got electrons because of HV
Switch Off the power supply turn Off the power supply

the lamp will turn Off

positive
Switch Off the pump turn Off the pump

the pump stops pulling put the air

positive
Postcondition System is Off



00004:High voltage

Step Step description Expected Result Result
Precondition System is Off
Switch On the system Turn On the HV  Get continuous power ( between 5 Kv and 60 Kv ) positive
Switch Off the system Turn Off the HV  Continuous power stops positive
Postcondition System is Off





00005: Acceleration of electrons



Step Step description Expected Result Result
Precondition System is Off
Switch On the pump turn On the pump 95% vacuum positive
Switch On the power supply turn On the power supply Get continuous power (6V) positive
Switch on the High Voltage Turn on the HV power supply Get continuous power ( between 5 Kv and 60 Kv ) positive
electrons acceleration Connecting the high voltage to the anode and the cathode (while controlling the change of force until we see the passage of electrons and their acceleration) Electrons leaving the anode accelerate towards the cathode and collide with it positive ( light appears between the anode and the cathode)
Switch Off the HV Turn off The HV power supply Electrons acceleration Stop positive
Switch Off the power supply turn Off the power supply the lamp will turn Off positive
Switch Off the pump turn Off the pump the pump stops pulling out the air positive
Postcondition System is Off



Analysis of the test results:

With the pump running: we used a tungsten-containing TV lamp.

Then we supplied the lamp with a power of 6 V; it lit up for a bit and then burned out. which indicates that we don't get a continuous exit of the electrons through the heater (6 V) .

After this stage, we turned on the high voltage, and we saw a violet light path, which indicates that we get electrons through the HV, and these electrons are moving quickly between

the anode and the cathode.

Because the pump was still running, the electrons took an almost straight path.

But this path was not thin because the electrons exited from all sides of the lamp ( because the lamp was present without the bottle that covered it )

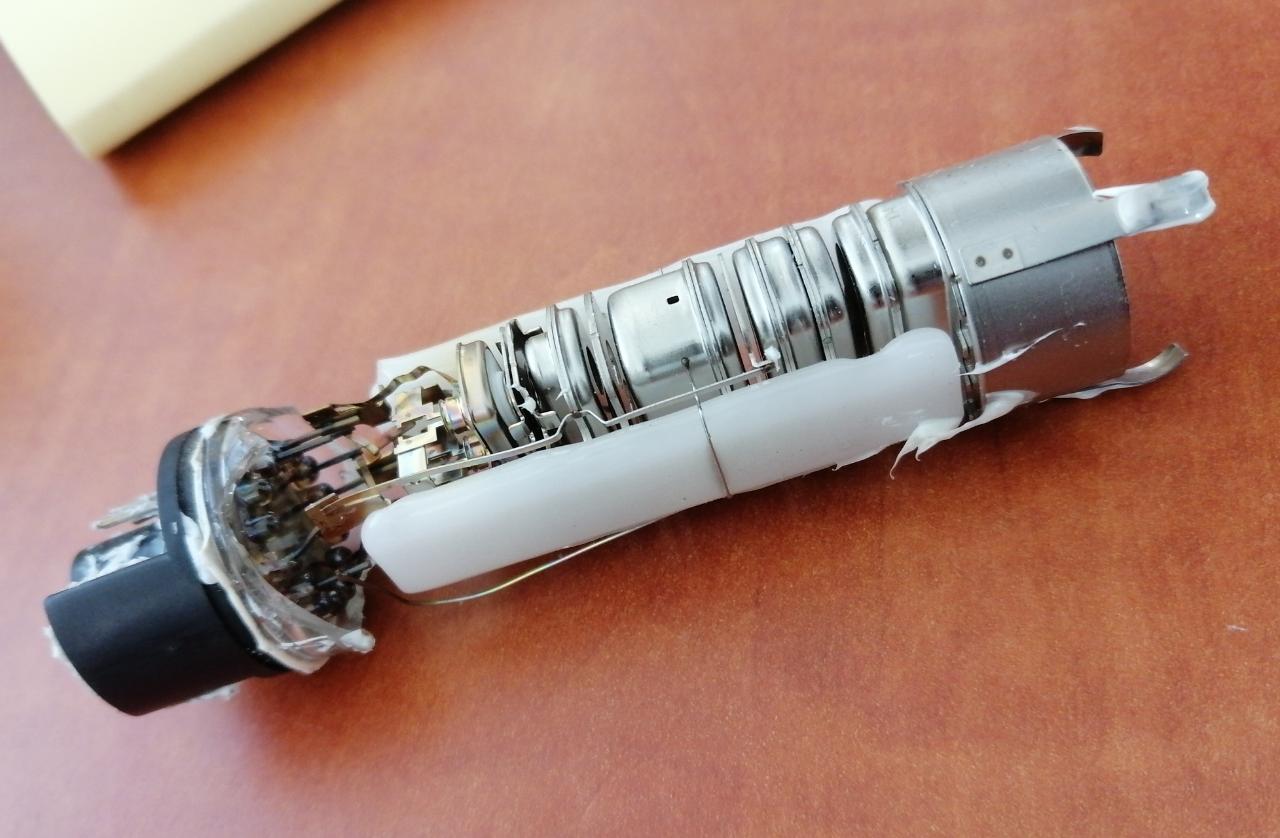

 The lamp we used for this test:

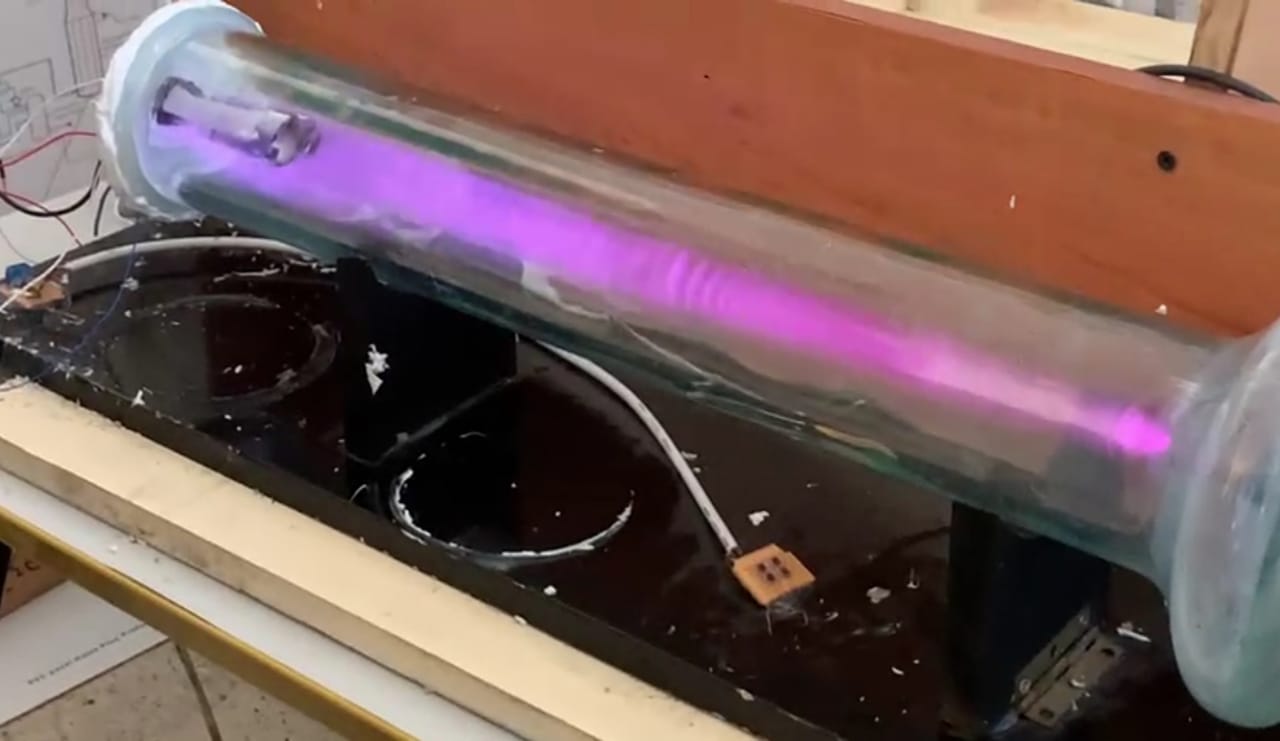

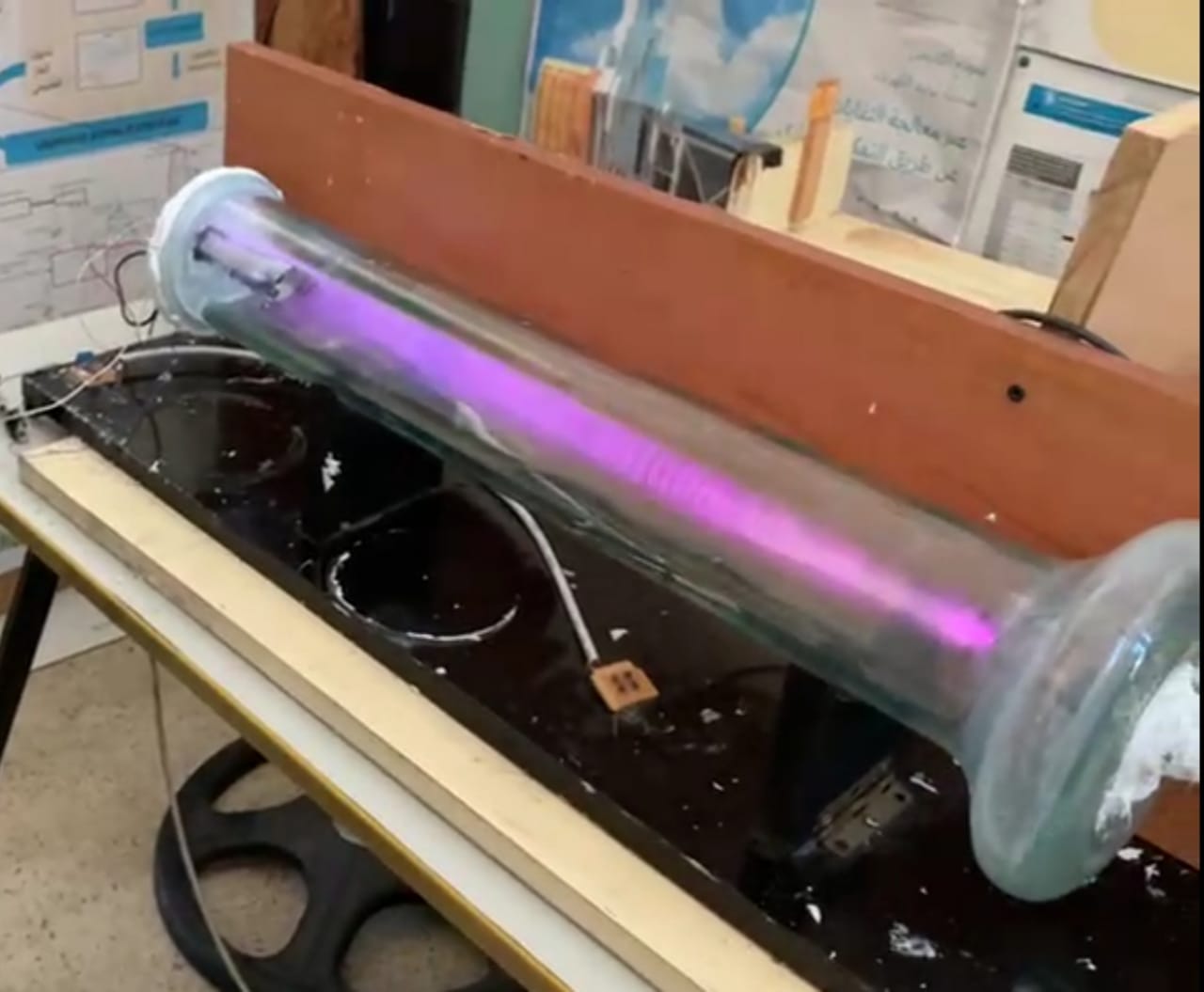

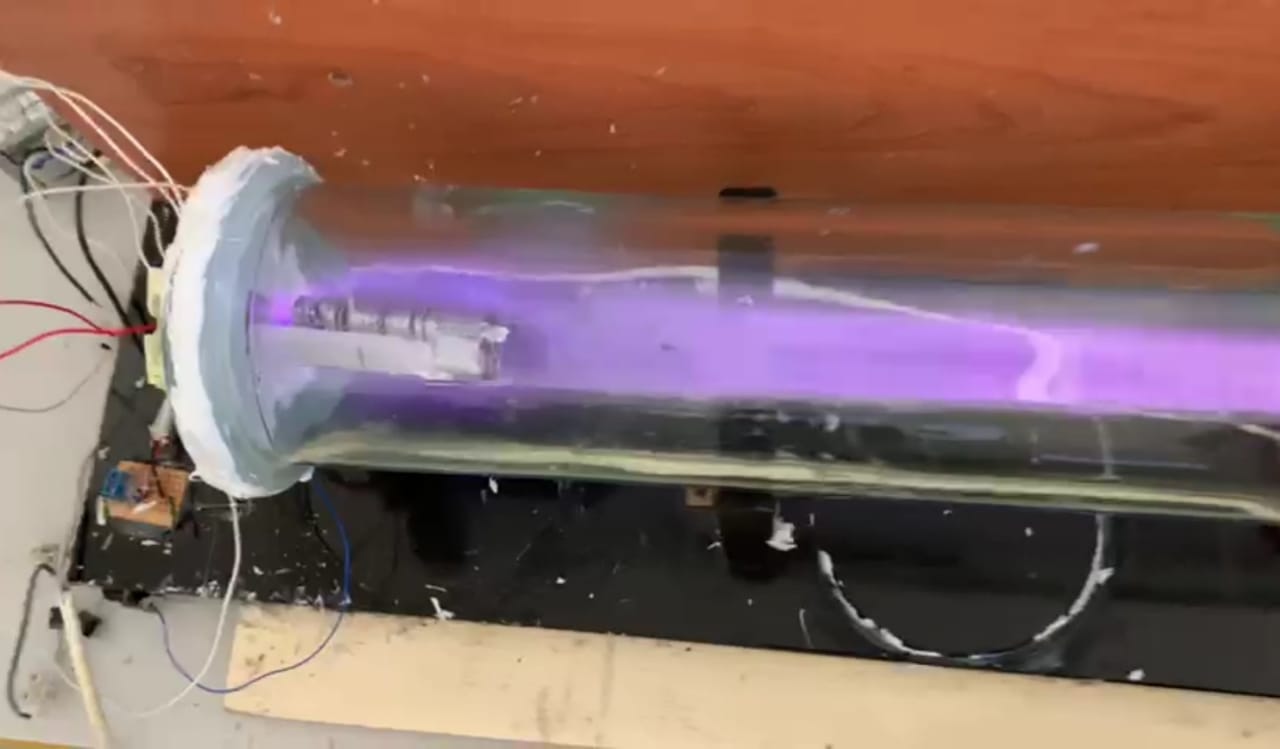

The path we got:









 What we have to do:

-we will use a lamp that has a glass encased in it.

-we will put a cylinder through the path of electrons in order to center the electrons.
