First contract for stage 1 on the Electric TukTuk enhancement project (dead line 30/11/2023).

 NLAS Electric Tuk-Tuk Enhancement word file

First Tasks: for 30/11/2023
Cad Design:
• Design new Chassis.
• Design and enhance the vehicle roof with the solar panel.
+ Excel sheet: vehicles components list



 Last version for tuktuk:

The new chassis and solar panel stand costs 500$ including material and labor work fees

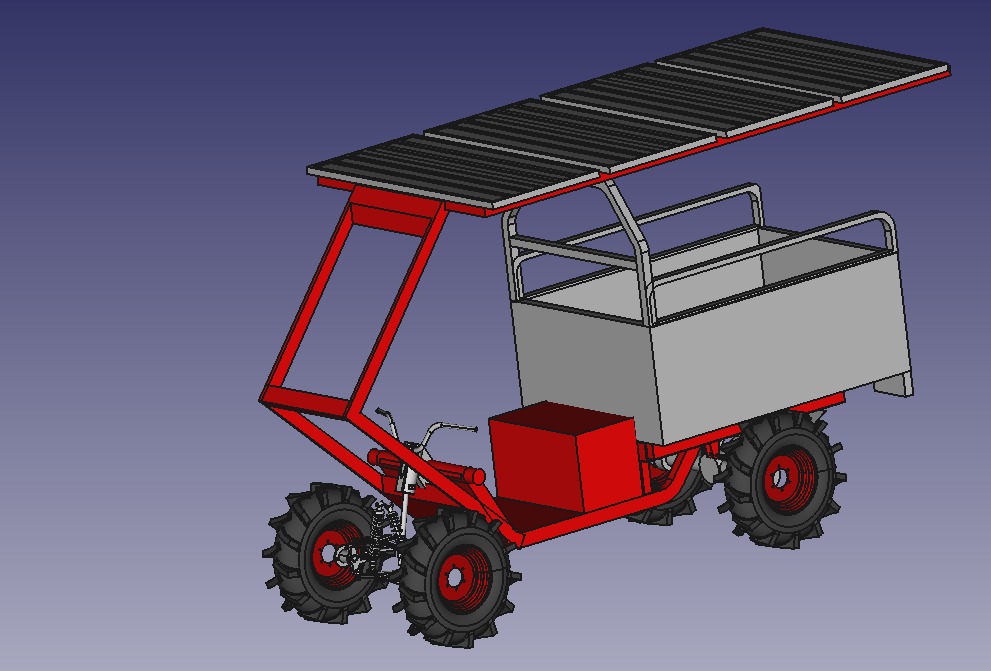

FreeCAD design 3-1-24_NEW tuktuk chassis with solar panel stand

FreeCAD design for solar panels stand:

31-10-2023_solar panels stand new

Excel sheet for all vehicle components:

31-10-2023_vehicle components list

Assembly of new chassis and solar panels stand:

31-10-2023_new assembly chassis with front suspension and solar panels

2D Parts Drawings:

1- Extension link from front suspension to main chassis

 FreeCAD 2d and 3d drawing of the extension link between front suspension and main chassis

2- Front main chassis:

2D and 3D drawing and techdraw for the front main chassis design

3- Back main chassis:

2d and 3d drawing of the back part of the main chassis

4 - L shape for solar panel stand:

 FreeCAD L shape design

5 - Solar panel roof:

FreeCAD solar panel roof

6 - Solar panel front side:

 FreeCAD solar panel front side design

7 - Main front suspension:

FreeCAD main front suspension design

8 - accessories:

 FreeCAD accessories design

Parts Quotation (from halabi):

Front suspension parts picture:
