# Vacuum Pump

The fundamentals of vacuum theory :

 pressure range pressure, mbar pressure, tor low vacuum 10^3 to 10 10^3 to 10 Medium vacuum 10 to 10^-3 10 to 10^-3 High vacuum 10^-3 to 10^-7 10^-3 to 10^-8 ultra-high vacuum 10^-7 to 10^-12 10^-7 to 10^-12

Choice of pressure range :

Both mass spectrometers and X-ray tubes require high vacuums to function properly.

In a mass spectrometer, the vacuum is needed to ensure that gas molecules in the sample being analyzed do not interact with other molecules or particles in the surrounding environment, which could interfere with the accuracy of the analysis. The vacuum pressure in a mass spectrometer is typically around 10^-5 to 10^-8 torr, which is much lower than atmospheric pressure (760 torr).

In an X-ray tube, the vacuum is needed to prevent gas molecules from absorbing or scattering the X-rays as they travel from the anode to the cathode. This allows the X-rays to be focused into a narrow beam and directed at the sample being analyzed. The vacuum pressure in an X-ray tube is typically around 10^-6 to 10^-7 torr.

Overall, both mass spectrometers and X-ray tubes require high vacuums in order to achieve accurate and reliable results.

Why the need for a high vacuum :

In a mass spectrometer, the sample is typically introduced into the instrument as a gas or vapor. If the instrument were not under high vacuum, the gas molecules would interact with other molecules in the air, which could lead to the formation of unwanted chemical compounds or the loss of some of the sample. These interactions would also create background noise in the instrument, making it difficult to accurately measure the properties of the sample.

Similarly, in an X-ray tube, the high vacuum is needed to prevent the X-rays from being absorbed or scattered by gas molecules in the surrounding environment. If the X-rays were to interact with gas molecules, it could create background noise in the signal or distort the image being formed by the X-rays.

Overall, the high vacuum in both mass spectrometers and X-ray tubes is necessary to ensure that the instruments can accurately and reliably measure the properties of the sample being analyzed.

Difference between vacuum pumps in series and parallel:

In general, the choice of series or parallel configuration depends on the specific requirements of the application, such as the desired vacuum level, gas load, and cost considerations. Some applications may benefit from a combination of both series and parallel configurations.

In series configuration, the pumps are connected one after the other, with the outlet of the first pump connected to the inlet of the second pump, and so on. This configuration can provide higher overall vacuum levels, as each pump contributes to reducing the pressure in the system.

In parallel configuration, the pumps are connected in parallel to the same inlet, with each pump handling a portion of the gas load. This configuration can provide higher gas pumping speeds and can be beneficial when the gas load is high.

• In a mass spectrometer, the vacuum pumps are typically arranged in series to achieve the required level of vacuum.

In a mass spectrometer, the sample is ionized and then accelerated in an electric field before being separated according to its mass-to-charge ratio. The ionized sample is then detected and analyzed. The performance of a mass spectrometer is highly dependent on the quality of the vacuum in the ionization chamber and the mass analyzer. The vacuum system must be able to maintain a high vacuum, typically in the range of 10^-6 to 10^-9 torr, to prevent collisions between the ions and gas molecules, which can degrade the performance of the instrument.

To achieve this level of vacuum, multiple vacuum pumps are typically arranged in series, with each pump designed to operate in a specific pressure range. The first pump in the series is typically a roughing pump, such as a rotary vane pump or scroll pump, which is designed to handle higher pressures. The subsequent pumps in the series are typically high-vacuum pumps, such as turbo pumps or ion pumps, which are designed to operate in the lower pressure ranges.

Overall, the series configuration is preferred in mass spectrometry applications as it allows for higher vacuum levels to be achieved while maintaining a lower gas load. Parallel configuration is not typically used in mass spectrometers, as it can lead to a higher gas load, which can degrade the performance of the instrument.

• In an X-ray tube, vacuum pumps are typically arranged in series to achieve and maintain the required level of vacuum.

In an X-ray tube, an electron beam is generated and accelerated to high energies, which then strikes a target material, producing X-rays. The vacuum inside the X-ray tube is critical for preventing the electrons from colliding with gas molecules, which can cause unwanted heating and interfere with the production of X-rays.

To achieve and maintain the high vacuum required in an X-ray tube, multiple vacuum pumps are typically arranged in series, with each pump designed to operate in a specific pressure range. The first pump in the series is typically a roughing pump, such as a rotary vane pump or scroll pump, which is designed to handle higher pressures. The subsequent pumps in the series are typically high-vacuum pumps, such as turbo pumps or ion pumps, which are designed to operate in the lower pressure ranges.

Overall, the series configuration is preferred in X-ray tubes as it allows for higher vacuum levels to be achieved while maintaining a lower gas load. Parallel configuration is not typically used in X-ray tubes, as it can lead to a higher gas load, which can interfere with the production of X-rays and reduce the quality of the output.

Type of vacuum pump for mass spectrometer:

The best type of vacuum pump for a mass spectrometer depends on the specific requirements of the application, such as the desired vacuum level, gas load, and cost considerations. However, in general, there are several types of vacuum pumps commonly used in mass spectrometry:

Turbo pumps: Turbo pumps are widely used in mass spectrometry applications due to their high pumping speed and low ultimate vacuum. These pumps can achieve vacuum levels in the range of 10^-10 torr and are designed to handle low gas loads.

Ion pumps: Ion pumps are also commonly used in mass spectrometry applications due to their ability to achieve ultra-high vacuum levels (10^-11 to 10^-12 torr) and their low gas load handling capabilities. Ion pumps work by ionizing gas molecules and accelerating them towards a surface, where they are adsorbed.

Rotary vane pumps: Rotary vane pumps are frequently used as roughing pumps in mass spectrometry systems due to their ability to handle high gas loads and achieve vacuum levels in the range of 10^-3 to 10^-6 torr.

Scroll pumps: Scroll pumps are another type of roughing pump that can handle high gas loads and achieve vacuum levels in the range of 10^-2 to 10^-6 torr.

Diaphragm pumps: Diaphragm pumps are oil-free and can handle moderate gas loads. They are typically used as backing pumps for turbo pumps or for roughing in smaller mass spectrometry systems.

Type of vacuum pump for X ray tube:

The best type of vacuum pump for an X-ray tube depends on the specific requirements of the application, such as the desired vacuum level, gas load, and cost considerations. However, in general, there are several types of vacuum pumps commonly used in X-ray tube applications:

Scroll pumps: Scroll pumps are widely used in X-ray tube applications due to their high pumping speed and ability to handle moderate gas loads. These pumps can achieve vacuum levels in the range of 10^-2 to 10^-6 torr.

Rotary vane pumps: Rotary vane pumps are also commonly used in X-ray tube applications due to their ability to handle high gas loads and achieve vacuum levels in the range of 10^-3 to 10^-6 torr.

Diaphragm pumps: Diaphragm pumps are oil-free and can handle moderate gas loads. They are typically used as backing pumps for other types of pumps in X-ray tube systems.

Turbomolecular pumps: Turbomolecular pumps can achieve high vacuum levels (10^-9 to 10^-11 torr) and are used in high-end X-ray tube applications where the highest vacuum is required. These pumps are more expensive than other types of pumps and require a backing pump to achieve optimal performance.

Note: the meaning of '' handle high gas loads''

In the context of vacuum pumps, "handling high gas loads" refers to a pump's ability to efficiently remove large volumes of gas or vapor from a system. In some applications, particularly those involving chemical or biological samples, there may be a significant amount of gas or vapor present in the vacuum chamber that needs to be removed quickly and efficiently.

A pump that is capable of handling high gas loads can remove these gases more quickly and effectively than a pump that is not designed for this purpose. This is important because the presence of gas or vapor in a vacuum system can interfere with the operation of sensitive equipment such as mass spectrometers or X-ray tubes.

Pumps that are designed to handle high gas loads typically have features such as larger pumping chambers, faster pumping speeds, and more efficient gas trapping mechanisms. These pumps can be more expensive than pumps designed for lower gas loads, but they are necessary for many applications that require the rapid and efficient removal of gas or vapor from a vacuum system.

Serial combination of two vacuum pumps of different types:

It is possible to put two vacuum pumps of different types in series to reach higher vacuum levels or to handle different types of gas. However, it is important to note that each type of vacuum pump has its own limitations in terms of pressure and pumping capacity.

When two vacuum pumps of different types are put in series, the pump with the lower pumping capacity will become the bottleneck and limit the performance of the whole system. It is therefore important to ensure that the two vacuum pumps are well matched and work well together to achieve the desired vacuum levels.

It is also important to consider application requirements, such as gas flow, type of gas, and required vacuum levels, when selecting the types of vacuum pumps to be used in series.

Note: the difference between high pressure pump and high vacuum pump

A high-pressure pump and a high-vacuum pump are two different types of pumps that operate on opposite ends of the pressure scale.

A high-pressure pump is designed to deliver fluids at high pressures, typically above 1000 psi (pounds per square inch). These pumps are commonly used in applications such as hydraulic systems, water jet cutting, and high-pressure cleaning.

In contrast, a high-vacuum pump is designed to remove gases from a vacuum chamber and create a low-pressure environment. High-vacuum pumps are capable of achieving pressures as low as 10^-12 Torr, which is several orders of magnitude lower than atmospheric pressure. These pumps are commonly used in scientific research, semiconductor manufacturing, and vacuum coating applications.

The main difference between these two types of pumps is their operating principle. High-pressure pumps typically use positive displacement or centrifugal mechanisms to deliver fluid at high pressures, while high-vacuum pumps use various mechanisms such as mechanical, diffusion, or turbomolecular pumping to remove gas molecules from a vacuum chamber.

In summary, a high-pressure pump is used to deliver fluids at high pressures, while a high-vacuum pump is used to remove gases from a vacuum chamber and create a low-pressure environment.

Total vacuum pressure in series configuration:

The rule for calculating the amount of vacuum obtained when putting two vacuum pumps in series depends on the type of pumps used and their configuration in the vacuum system. In general, the rule of thumb is that the vacuum pressure will be determined by the worst performing pump in the series. This means that the pump that is able to create the highest pressure should be placed first in the series.

The mathematical formula for calculating the total vacuum pressure in a series pumping configuration is given by:

1/Pt = 1/P1 + 1/P2 + ... + 1/Pn

Where Pt is the total pressure, P1, P2, ..., Pn are the partial pressures of the individual pumps in series.

It is important to note that the efficiency of each pump decreases as the pressure decreases. Therefore, it is important to select pumps that are compatible with each other to ensure optimum performance. Factors such as pump flow rate, pipe size and gas characteristics should be considered when selecting pumps and configuring them in the vacuum system.

For example, suppose we have two vacuum pumps in series, one is a rotary vacuum pump which can reach 10^-2 mbar vacuum pressure and the other is a diffusion vacuum pump which can reach a vacuum pressure of 10^-5 mbar. If we put the rotary pump in series’ first, followed by the diffusion pump, the total vacuum pressure in the system will be determined by the diffusion pump, which has the ability to create higher vacuum pressure.

Using the formula I mentioned earlier, we can calculate the total vacuum pressure in the series configuration:

1/Pt = 1/P1 + 1/P2

1/Pt = 1/10^-2 + 1/10^-5

1/Pt = 100 + 100000

1/Pt = 100100

Pt = 9.99 x 10^-6 mbar

Thus, the total vacuum pressure in this system would be approximately 9.99 x 10^-6 mbar. This shows that the diffusion pump is the most efficient pump in this series configuration.

Categories of two pumps compatible with each other:

In an X-ray tube, the two types of vacuum pumps commonly used in series are:

Vane Vacuum Pump and Diffusion Vacuum Pump: The vane vacuum pump is used to pump high pressure gases, while the diffusion vacuum pump is used for low pressure gases. This combination is very effective in maintaining a high vacuum in the x-ray tube.

Diaphragm vacuum pump and turbomolecular vacuum pump: These two types of pumps are also compatible with each other in an X-ray tube. Diaphragm vacuum pump is used to pump low pressure gases, while vacuum pump turbomolecular pump is used to pump high pressure gases.

In a mass spectrometer, the two types of vacuum pumps commonly used in series are:

Diffusion Vacuum Pump and Ion Vacuum Pump: Diffusion vacuum pump is used to pump low pressure gases, while ion vacuum pump is used to pump high pressure gases. This combination of pumps is very effective in maintaining ultra-high vacuum pressure in the mass spectrometer.

Diaphragm vacuum pump and turbomolecular vacuum pump: these two types of pumps are also compatible with each other in a mass spectrometer. Diaphragm vacuum pump is used to pump low pressure gases while turbomolecular vacuum pump is used to pump high pressure gases.

It is important to select pumps that are compatible with each other to ensure efficient and reliable operation of the instrument. Specific characteristics of the mass spectrometer or X-ray tube, such as operating pressure range, pump flow rate, and gas characteristics, must be considered when selecting pumps for series use.

Possibilities for two vacuum pumps in series for X ray tube and mass spectrometer:

There are several possibilities for using two vacuum pumps in series for an X-ray tube and mass spectrometer setup. Here are some of the common configurations:

• Rotary vane pump + turbo molecular pump: This is a common setup for both X-ray tubes and mass spectrometers. The rotary vane pump is used as a roughing pump to create a low vacuum in the chamber, and then the turbo molecular pump is used to create a high vacuum. The turbo molecular pump is capable of achieving higher vacuum levels than the rotary vane pump and is also more efficient at removing gases.
• Diaphragm pump + turbo molecular pump: This is another common setup for both X-ray tubes and mass spectrometers. The diaphragm pump is used as a roughing pump, and then the turbo molecular pump is used to create a high vacuum. Diaphragm pumps are quieter and more compact than rotary vane pumps, but they are not as efficient at removing gases.
• Scroll pump + turbo molecular pump: This is a newer technology that is becoming more popular for both X-ray tubes and mass spectrometers. The scroll pump is used as a roughing pump, and then the turbo molecular pump is used to create a high vacuum. Scroll pumps are oil-free and have fewer moving parts than rotary vane pumps, which makes them more reliable and easier to maintain.
• Roots blower pump + turbo molecular pump: This configuration is typically used for high flow rate applications, such as large mass spectrometers. The roots blower pump is used as a roughing pump, and then the turbo molecular pump is used to create a high vacuum. Roots blower pumps are capable of pumping large volumes of gas, but they are not as efficient at removing gases as other types of pumps.

Best type of vacuum pump in serial with the turbo molecular:

To obtain high vacuum in an X-ray tube or mass spectrometer, the best type of vacuum pump to use in series with a turbo molecular pump depends on the specific requirements of the system.

One type of pump that is commonly used in series with a turbo molecular pump to achieve high vacuum is the ion pump. Ion pumps operate by ionizing gas molecules and accelerating the ions towards a collector electrode, effectively pumping the gas from the chamber. Ion pumps can achieve ultra-high vacuum levels, reaching pressures as low as 10^-10 torr. They are also highly reliable and can operate for long periods of time without requiring maintenance.

Another pump that can be used in series with a turbo molecular pump to achieve high vacuum is the cryogenic pump. Cryogenic pumps use a refrigeration system to freeze and condense gas molecules, effectively pumping them from the chamber. Cryogenic pumps can achieve ultra-high vacuum levels, reaching pressures as low as 10^-12 torr. They are also highly effective at removing water and other condensable gases.

In addition, diffusion pumps can also be used in series with a turbo molecular pump to achieve high vacuum. Diffusion pumps work by creating a high-speed jet of vapor that entrains gas molecules from the chamber, effectively pumping the gas from the chamber. Diffusion pumps can achieve high vacuum levels, typically up to around 10^-7 torr.

It is important to note that all of these pumps require specialized equipment and techniques for installation and operation. It is recommended to consult with a vacuum technology expert to determine the best pump configuration for a specific X-ray tube or mass spectrometer system.

Note: because of the high cost of these pumps with the turbomolecular pump, we will resort to using a less expensive pump with the turbomolecular pump. Accordingly, we chose the diaphragm pump with turbomolecular pump in serial.

After researching the types of turbomolecular pump and diaphragm pump, it is possible to use both the “BOC Edwards EXT 255H turbomolecular vacuum pump” and the “JOAN Lab oilless diaphragm vacuum pump” in series for X-ray tube and mass spectrometer applications.

In such a setup, the oilless diaphragm vacuum pump would be used as a roughing pump to initially evacuate the system and then the BOC Edwards turbomolecular pump would be used to achieve the high vacuum required for X-ray tube and mass spectrometer applications.

This type of setup is common in analytical instrumentation where different types of vacuum pumps are used in series to achieve the desired vacuum conditions. However, it is important to ensure that the pumps are properly connected and configured to avoid any performance issues or damage to the pumps or the instrument. It is recommended to consult with the instrument manufacturer or a vacuum pump expert to ensure that the pumps are compatible and that the setup is appropriate for the specific application.

It's difficult to estimate the final vacuum level without knowing more about the specific application and system design. However, it's possible to achieve high vacuum levels in the range of 10^-8 to 10^-10 Torr with the combination of a turbomolecular pump and a diaphragm pump in series. The actual achievable vacuum level will depend on various factors such as the pump speed, pumping efficiency, system leaks, and gas load. It's important to properly size the pumps and design the system to achieve optimal performance.

Problems and how to avoid them while using these two pumps:

Problems: There are some potential issues that may arise when using a turbo molecular pump and a diaphragm pump in series. One concern is the potential for contamination of the high vacuum chamber due to outgassing from the diaphragm pump, which may reduce the ultimate vacuum level achieved. Additionally, the diaphragm pump may not be able to effectively pump certain types of gases, such as noble gases, which may require the use of an additional pump or different pumping system altogether. Another potential issue is the possibility of backflow from the turbo molecular pump into the diaphragm pump, which can cause damage to the diaphragm pump or introduce contamination into the system. Proper use of valves and other safeguards can help mitigate these issues.

How to avoid the problems: To properly use these two pumps in series for X-ray tube and mass spectrometer applications and avoid any problems, here are some guidelines:

1. Connect the pumps in series in the correct order, with the turbomolecular pump first and the diaphragm pump second.
2. Make sure the pumps are properly installed and securely connected to the system.
3. Power on the turbomolecular pump and allow it to reach its operating speed before turning on the diaphragm pump.
4. Monitor the vacuum level in the system and adjust the pumping speed of the diaphragm pump accordingly to prevent overloading the turbomolecular pump and causing it to fail.
5. Regularly check and clean the filters and oil levels in the diaphragm pump to prevent contamination of the vacuum system.
6. Follow the manufacturer's recommended maintenance and operating procedures for each pump.
7. Be aware that using two pumps in series can increase the complexity of the vacuum system and require additional monitoring and maintenance.

By following these guidelines, we can properly use the two pumps in series and avoid any problems with your X-ray tube and mass spectrometer applications.

Note : Using two  vacuum pumps (JOAN Lab Oilless Diaphragm Vacuum Pump Manufacturer)  in serial

The vacuum level achieved by using two JOAN Lab Oilless Diaphragm Vacuum Pumps in series depends on various factors such as the pumping speed, chamber volume, gas load, and system leaks.

The ultimate vacuum level that can be achieved by these pumps is typically in the range of 10^-3 to 10^-4 Torr. However, the actual vacuum level achieved in a specific system will depend on the system design and operating conditions.

It is also worth noting that the use of multiple pumps in series does not necessarily guarantee a higher vacuum level, but it can improve the pumping speed and efficiency of the system.

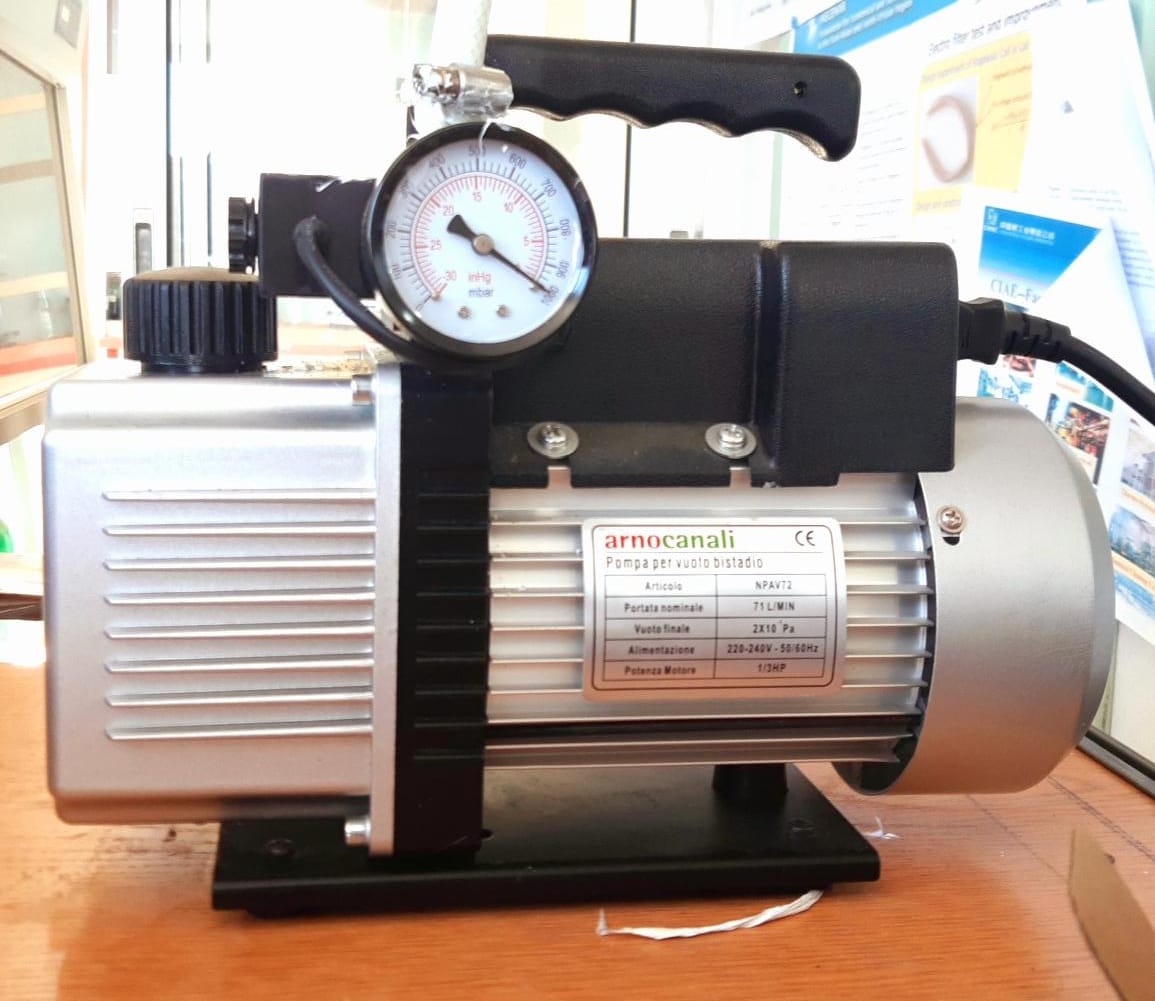

Inability to use the (Arnocanali Bistadium High Pressure Pump 42L/H) in our device:

This kind of pump was available in our laboratory; we searched for its properties in order to find out the possibility of using it in our device.

The Arnocanali Bistadium High Pressure Pump 42L/H is primarily designed for high-pressure applications in industries such as chemical processing, water treatment, and agriculture. While it may be suitable for some laboratory applications, it is not specifically designed or marketed for use with X-ray tubes or mass spectrometers.

Vacuum pumps used for X-ray tubes and mass spectrometers often require specific features such as low noise, low vibration, high pumping speed, and oil-free operation to prevent contamination of the samples being analyzed. Therefore, it is essential to select a vacuum pump that meets the specific requirements of the application.

If you are looking for a vacuum pump for use with an X-ray tube or mass spectrometer, it is best to consult with the manufacturer of the equipment or a specialist in vacuum technology to determine the most appropriate pump for your needs.

Cleaning a device of stainless steel before pumping:

Cleaning a stainless-steel device, such as an X-ray tube and mass spectrometer, before evacuating it from the air requires a careful and thorough process to ensure that the device is free of any contaminants that may interfere with its performance. Here are the general steps to follow:

1. First, remove any visible dirt or debris from the device using a soft cloth or brush.
2. Next, prepare a cleaning solution by mixing a mild detergent with water. Avoid using abrasive or acidic cleaners, as these can damage the stainless-steel surface.
3. Dip a clean cloth or sponge into the cleaning solution and gently wipe down the device, making sure to cover all surfaces. Be sure to avoid getting any cleaning solution into the internal components of the device.
4. Rinse the device thoroughly with clean water to remove any remaining cleaning solution. Use a clean cloth or sponge to dry the device completely.
5. Once the device is dry, use a vacuum pump to evacuate the air from the device. This will remove any remaining contaminants that may be present inside the device.
6. After evacuating the device, it is important to seal it to prevent air from re-entering. Use a sealant that is compatible with stainless steel and the internal components of the device.
7. Finally, test the device to ensure that it is functioning properly. If any issues are found, repeat the cleaning process and re-test the device.

Overall, the key to cleaning a stainless-steel device before evacuation is to be thorough and careful to avoid damaging the device or leaving any contaminants behind.

• When cleaning a device made of stainless steel, it is important to use a cleaning solution that is safe for the material and will not leave any residue that could interfere with the device's performance. Here are some cleaning solutions that are suitable for cleaning a stainless-steel X-ray tube and mass spectrometer:
1. Mild soap and water: A solution of mild dish soap and warm water is a good choice for cleaning stainless steel. This solution is gentle and will not damage the material.
2. Isopropyl alcohol: Isopropyl alcohol is a good cleaning solution for removing oils and other contaminants from stainless steel surfaces. It evaporates quickly, leaving no residue behind.
3. Ammonia solution: A solution of ammonia and water can be used to clean stainless steel, but it should be used with caution. Ammonia can be abrasive and can damage the surface of the stainless steel if it is not diluted properly.
4. Vinegar and water: A solution of white vinegar and water can be used to clean stainless steel. Vinegar is a mild acid that can help remove stains and discoloration from the surface of the stainless steel.

Whichever cleaning solution you choose to use, be sure to follow the manufacturer's instructions for use and dilution ratios. Also, be sure to rinse the device thoroughly with clean water after cleaning to remove any residual cleaning solution.

Is there a need to heat the device of stainless steel to clean it?

In general, it is not necessary to heat a device made of stainless steel to clean it. Cleaning with warm water or a mild soap solution at room temperature is sufficient to remove most dirt and debris from the surface of the stainless steel. However, if there are stubborn stains or contaminants on the surface of the device that are difficult to remove, some cleaning solutions may work better if they are heated.

For example, a warm solution of mild soap and water can be more effective in breaking down oily residues that may have accumulated on the surface of the device. However, it is important to avoid using very hot water or exposing the device to high temperatures, as this could damage the internal components or the surface of the stainless steel.

Overall, the temperature at which you clean a device made of stainless steel will depend on the specific cleaning solution you are using and the type of contaminants that need to be removed. Always follow the manufacturer's instructions for use and avoid using excessive heat or harsh chemicals that could damage the device.
