Ashes Recycling Mechanical Design

Overview

Parts' dimensions of columns

Parts

Dimensions

Covering column

Internal diameter:212 mm

Outside diameter:220mm

Columns that carry  stators

Number:3

Diameter:4 mm

Height 2500 mm

Stator

Number:10

Internal diameter:120 mm

outside diameter:204 mm

Height:15 mm

Spaced:150 mm



Decanter

(cylinder+cone)

Number:2

Radius 1:110 mm

Radius 2:200 mm

Height: 100 mm

-Cylinder:

Height:300 mm

Diameter:400 mm

Rotation axis



Diameter :40 mm, height:3500 mm



Rotor perforated(20 punch ,D=8 mm )

Number :10

Internal diameter:40 mm

Outside diameter:100 mm

Height:15 mm

Spaced :150 mm





 Design:

Dimensions of Bateman pulsed column

materials

radius (m)

Height (m)

number

Stator ring

0.245

0.01

19

rotor  disk

0.125

0.02

19

Main tube

0.25

4

1

Tube (driver )

0.05

8.5

1

Inlet & outlet

0.15

0.5

2

Download System FreeCad File for more specifications:

Ashes Recycling System (.FCStd)

Rotor and Stator

Download Rotor and Stator FreeCad Files for more specifications:

Rotor Design (.FCStd)

Stator Design (.FCStd)



Distribution of Rotors and Stators

Mixer settler

Dimensions of Mixer –settler

Component

Height(m)

Radius (m)

Mixer 1

1

0.75

Inlet 1

0.2

0.1

inlet 2

0.2

0.1

Outlet 1

0.6

0.05

Mixer 2

1

0.75

Inlet 1

0.2

0.1

inlet 2

0.2

0.1

Outlet 1

0.6

0.05



Download Mixer FreeCad File for more specifications:

Mixer Design (.FCStd)

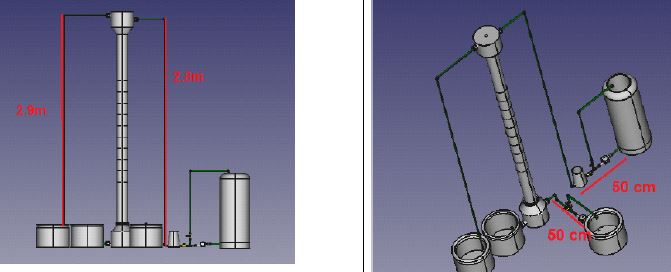

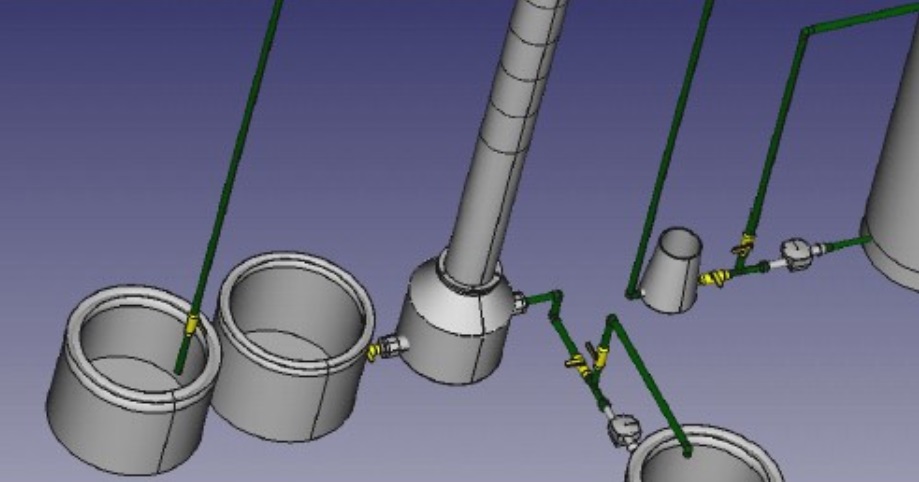

Ashes Recycling Testrig
