LINAC Test 18/01/23



In this test, we repeated the same steps of the previous test ( Test 16.01.23) to make sure that the problem was really from the tungsten used .

(we made some changes in the electrical connections).

And the result was the same, which is the combustion of the tungsten.

00002: power supply

Step Step description Expected result Result
Precondition System is Off
Switch On the system turn on the power supply (P1) Get continuous power (6 V) positive
Switch Off the system turn Off the power supply (P1) Continuous power stops positive
Postcondition System is Off





00003: Get electrons

Step Step description Expected Result Result
Precondition System is Off
Switch On the pump turn On the pump 95% vacuum positive
Switch on the power supply Turn on the power supply Get continuous power (6 V) positive
Burning the Tungsten (or use a electron Gun) Burn the Tungsten by supplying it with 6 V power

Get electrons around the Tungsten ( the lamp will light)

positive (the lamp turned on)

Switch Off the power supply turn Off the power supply the lamp will turn Off positive (the lamp continues to light)
Switch Off the pump turn Off the pump the pump stops pulling out the air positive
Postcondition System is Off



00004:High voltage

Step Step description Expected Result Result
Precondition System is Off
Switch On the system Turn On the HV  Get continuous power ( between 5 Kv and 60 Kv ) positive
Switch Off the system Turn Off the HV  Continuous power stops positive
Postcondition System is Off





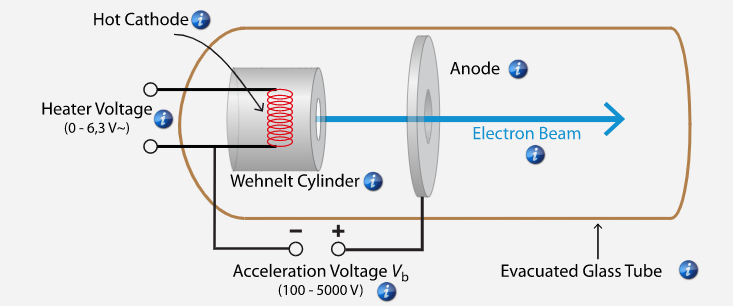

00005: Acceleration of electrons

Step Step description Expected Result Result
Precondition System is Off
Switch on the pump Turn on the pump 95% vacuum positive
Switch On the power supply turn On the power supply Get continuous power (6 V) positive
Switch On the High Voltage Turn on the HV power supply Get continuous power ( between 5 Kv and 60 Kv ) positive
electrons acceleration Connecting the high voltage to the anode and the cathode (while controlling the change of force until we see the passage of electrons and their acceleration) Electrons leaving the anode accelerate towards the cathode and collide with it negative
Switch Off the HV Turn Off The HV power supply Electrons acceleration Stop negative (no electrons yet)
Switch Off the power supply turn Off the power supply the lamp will turn Off positive
Switch Off the pump turn Off the pump the pump stops pulling out the air positive
Postcondition System is Off

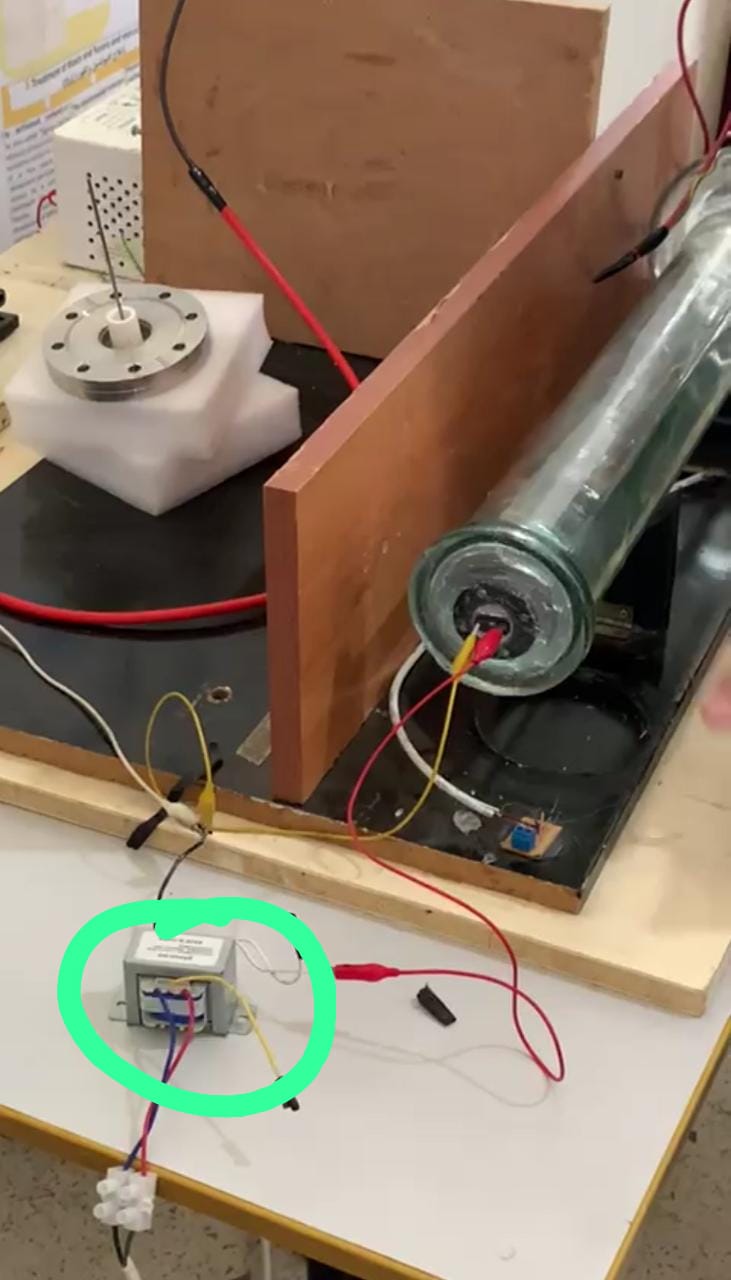

This is the transformer that takes a voltage of 220 V and gives a voltage of 6 V:

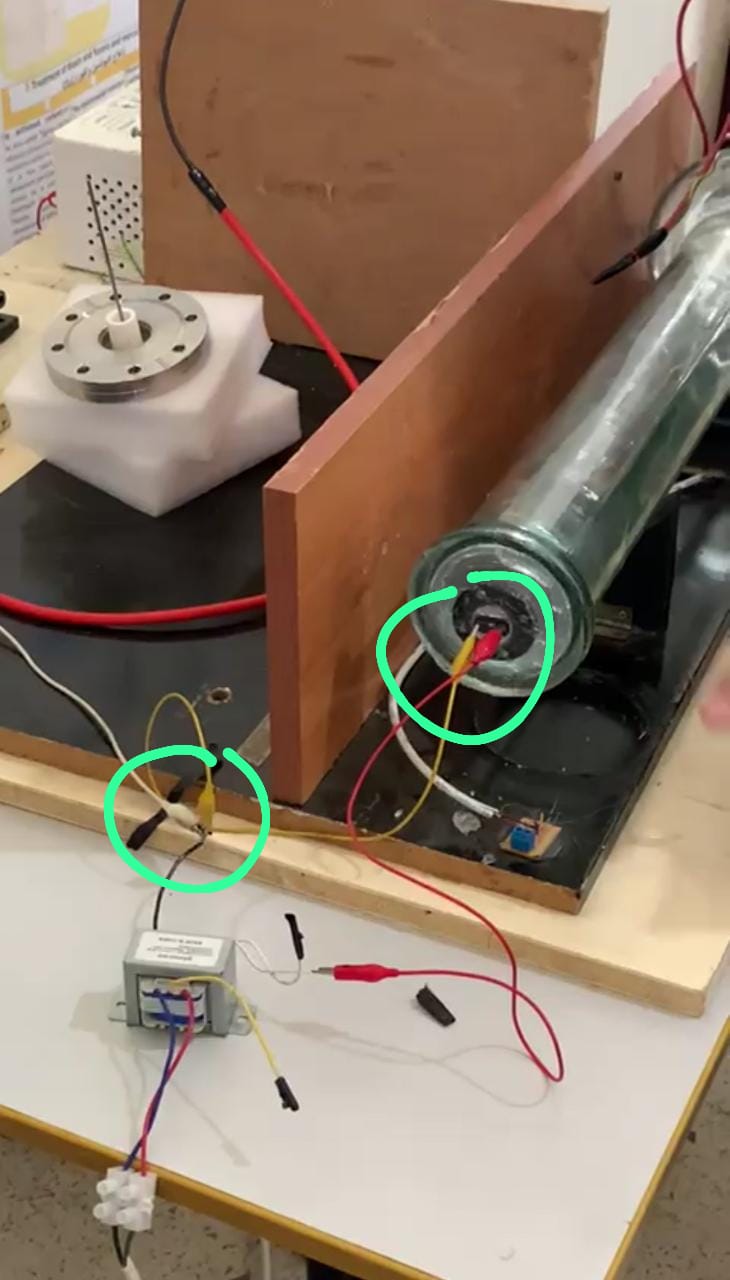

Here we connect the 6 volt power to the high voltage:
